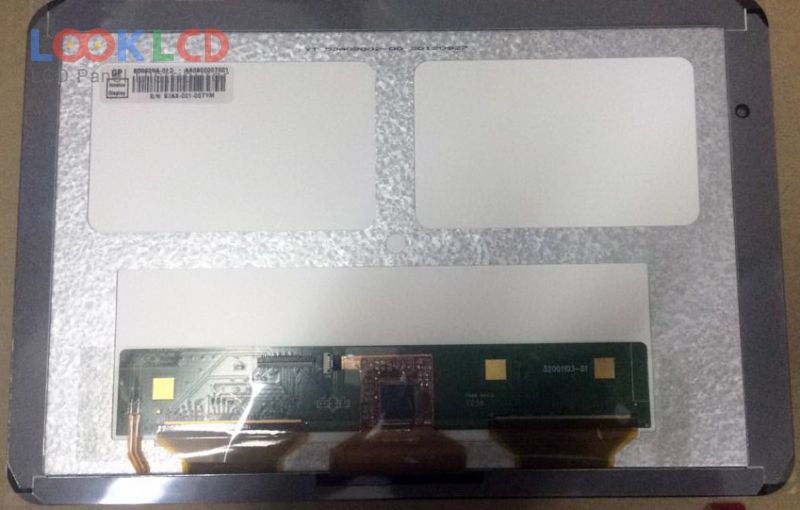

| Číslo dielu | ED090NA-01D |
| Značka | Innolux |
| Veľkosť | 9.0 |
| Aplikácia | PAD |
| Rozhodnutie | 1280×800 |
| Zloženie | Assembly |
| Jas | 200 |
| CR | 700:1 |
| Farby | 262K/16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | ED090NA-01D |
| typ panelu | a-Si TFT-LCD , Assembly |
| veľkosť panelu | 9.0 inch |
| rozhodnutie | 1280(RGB)×800 , WXGA |
| aktívna oblasť | 193.92×121.2 mm |
| obrys | 235.12×156.4×7.84 mm |
| povrch | Hard coating (7H) |
| jas | 200 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| pozorovací uhol | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 51 pins |
| vstupné napätie | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikácie | PAD |
