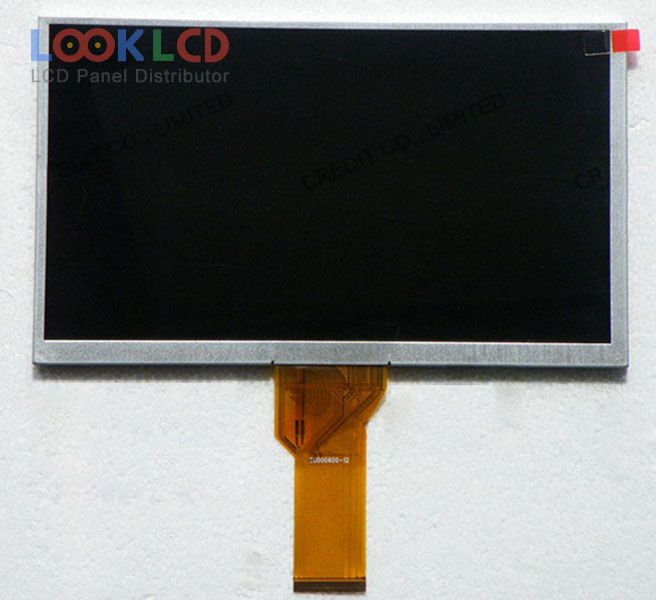

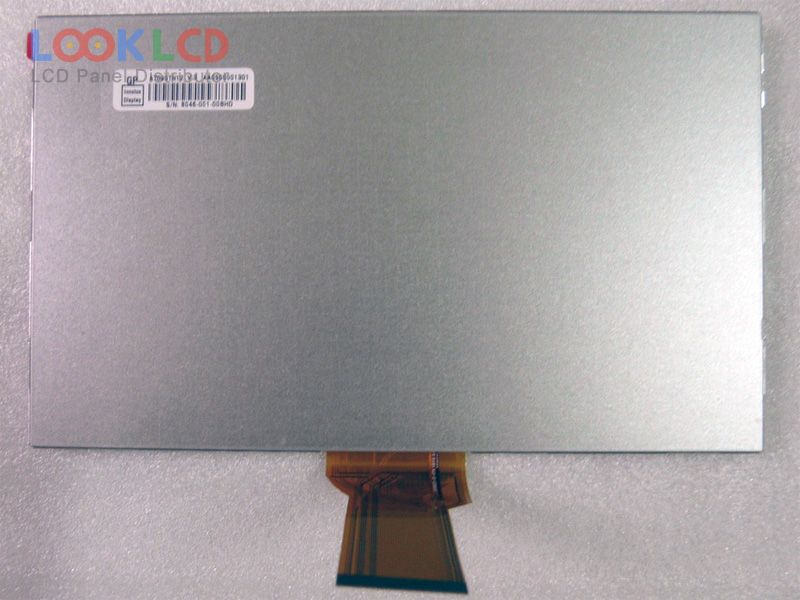

| Číslo dielu | AT090TN12 V.3 |
| Značka | Innolux |
| Veľkosť | 9.0 |
| Aplikácia | DPF |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 500:1 |
| Farby | 262K/16.2M |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | INNOLUX |
| panelový model | AT090TN12 V.3 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 9.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 198×111.696 mm |
| obrys | 211.1×126.5 mm |
| povrch | Antiglare |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K/16.2M (6-bit / 6-bit + Dithering), CIE193150% |
| Doba odozvy | 10/15 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S11PWLEDWithout Driver |
| signálové rozhranie | TTL (1 ch, 6/8-bit), 50 pins |
| vstupné napätie | 3.3/10.4/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikácie | DPF |
