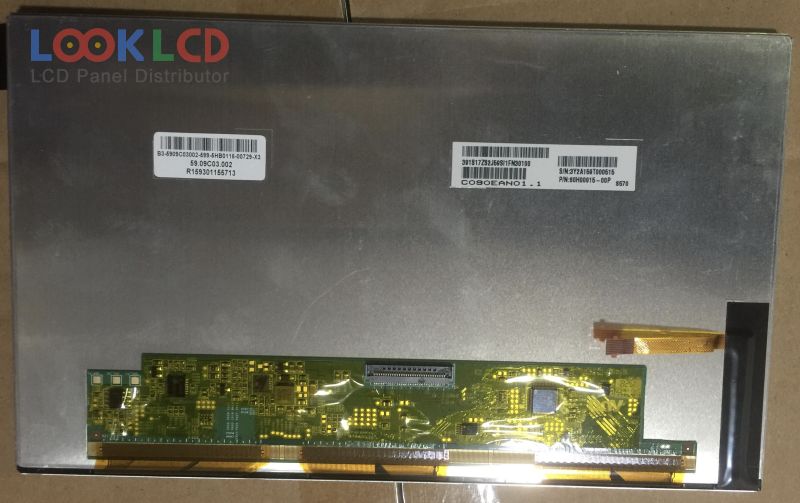

| Číslo dielu | C090EAN01.1 |
| Značka | AUO |
| Veľkosť | 9.0 |
| Aplikácia | CNS |
| Rozhodnutie | 1280×720 |
| Zloženie | LCM |
| Jas | 680 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | C090EAN01.1 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 9.0 inch |
| rozhodnutie | 1280(RGB)×720 , WXGA |
| režim zobrazenia | AHVA, Normally Black, Transmissive |
| aktívna oblasť | 198.72×111.78 mm |
| obrys | 210×126.8 mm |
| povrch | Antiglare |
| jas | 680 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit) |
| Doba odozvy | 15/15 (Max.)(Tr/Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 6S3PWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 8-bit), 40 pins |
| vstupné napätie | 3.3/3.3V (Typ.)(VDD/VDDA) |
| aplikácie | CNS |
| A090VW01 V3 | AUO | 9.0 | 800×480 |
| AA090AA01 | Mitsubishi | 9.0 | 960×540 |
| AA090ME01 | Mitsubishi | 9.0 | 800×480 |
| C090EAN01.1 | AUO | 9.0 | 1280×720 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| CLAA090NA06CW | CPT | 9.0 | 1024×600 |
| HLD0909-020010 | Hosiden | 9.0 | 640×480 |
| LQ090Y3DG01A | SHARP | 9.0 | 800×480 |
| NL192108AC10-01D | NLT | 9.0 | 1920×1080 |
| YX090DKN01.0 | SEBO | 9.0 | 1280×720 |
| 70WVW1A | SII | 7.0 | 800×480 |
| AM-1024600-070H | Other | 7.0 | 1024×600 |
| C070FW02 V2 | AUO | 7.0 | 480×234 |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| LA070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LA070WV5-SL01 | LG Display | 7.0 | 800×480 |
| LQ065T5DG05 | SHARP | 6.5 | 480×234 |
| LQ101K5DZ01 | SHARP | 10.1 | 1280×422 |
| PA050DT2 | E Ink | 5.0 | 320×234 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
