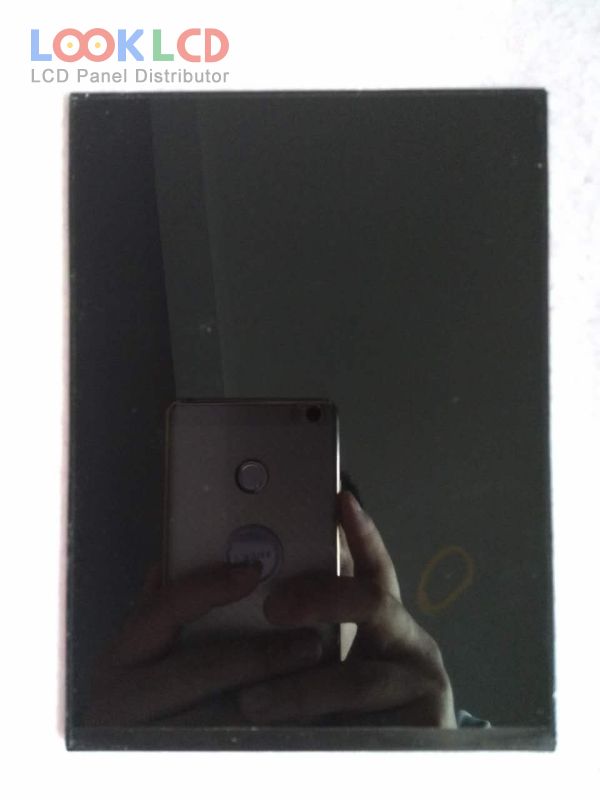

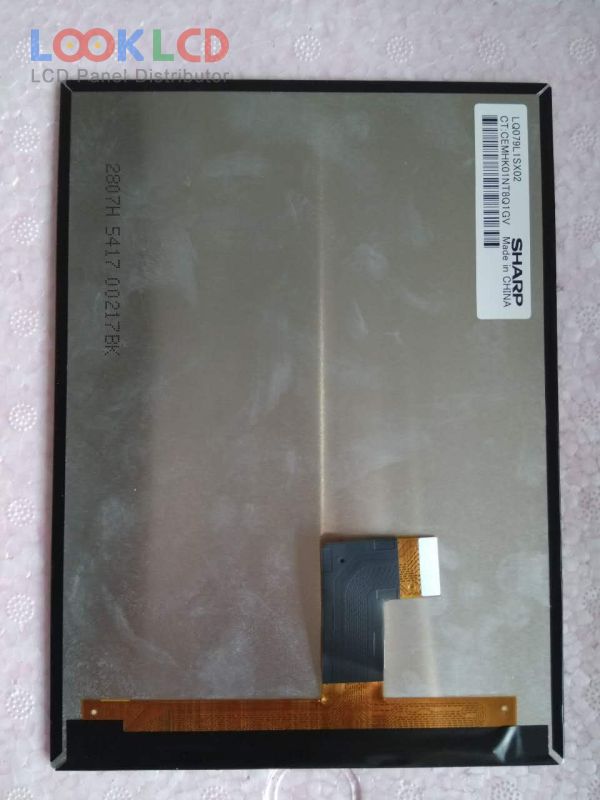

| Číslo dielu | LQ079L1SX02 |
| Značka | SHARP |
| Veľkosť | 7.9 |
| Aplikácia | PAD |
| Rozhodnutie | 1536×2048 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | MIPI |
| značka panelu | SHARP |
| panelový model | LQ079L1SX02 |
| typ panelu | IGZO TFT-LCD , LCM |
| veľkosť panelu | 7.9 inch |
| rozhodnutie | 1536(RGB)×2048 , QXGA |
| režim zobrazenia | Normally Black, Transmissive |
| aktívna oblasť | 119.808×159.744 mm |
| obrys | 125.55×170.95 mm |
| povrch | Clear, Hard coating |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193170% |
| Doba odozvy | 35 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 6S4PWLEDWithout Driver |

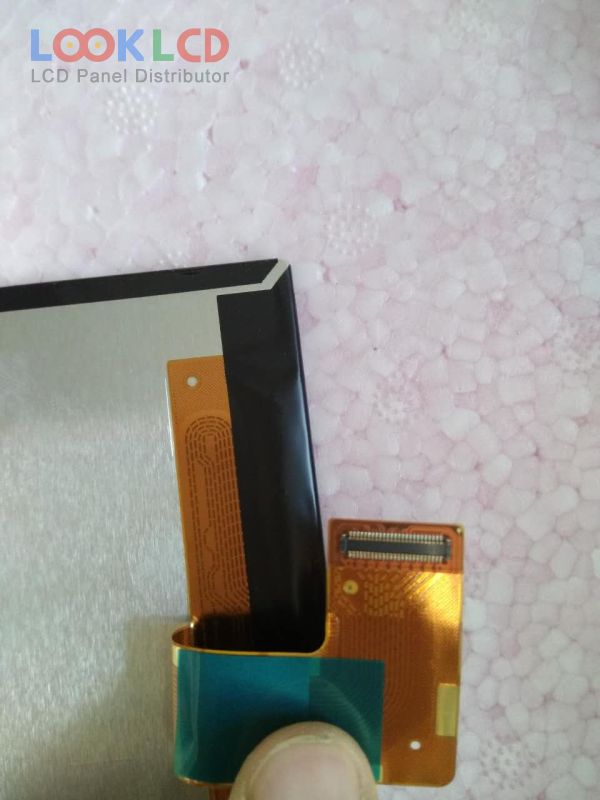

| signálové rozhranie | MIPI (2 ch, 4 data lanes), 50 pins |
| vstupné napätie | 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN) |
| aplikácie | PAD |
