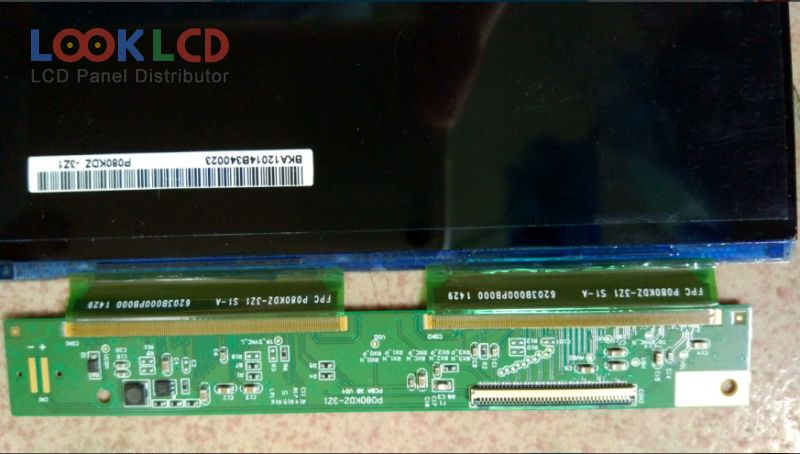

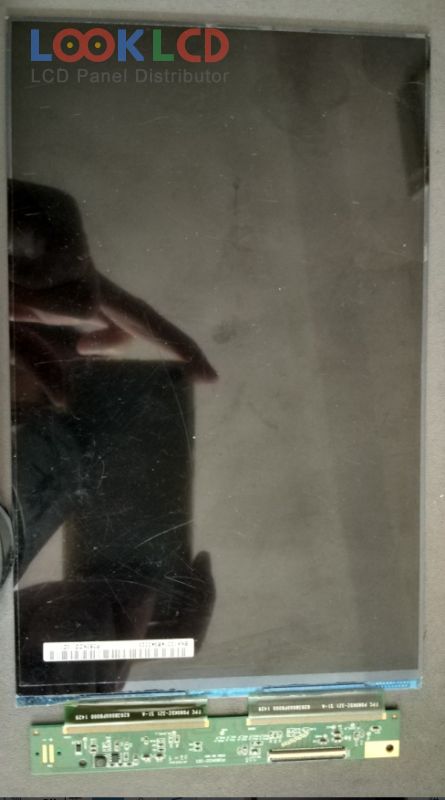

| Číslo dielu | P080KDZ-3Z1 |
| Značka | Innolux |
| Veľkosť | 8.0 |
| Aplikácia | PAD |
| Rozhodnutie | 1200×1920 |
| Zloženie | CELL |
| Jas | 0 |
| CR | 800:1 |
| Farby | 16.7M |
| Podsvietenie | No B/L |
| Rozhranie | MIPI |
| značka panelu | INNOLUX |
| panelový model | P080KDZ-3Z1 |
| typ panelu | a-Si TFT-LCD , CELL |
| veľkosť panelu | 8.0 inch |
| rozhodnutie | 1200(RGB)×1920 , WUXGA |
| režim zobrazenia | IPS, Normally Black, Transmissive |
| aktívna oblasť | 107.64×172.224 mm |
| obrys | 112.64×181.8 mm |
| povrch | Hard coating |
| hĺbka skla | 0.40+0.40 mm |
| priepustnosť | 3.85% (Typ.)(with Polarizer) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193160% |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| signálové rozhranie | MIPI (4 data lanes), 40 pins |
| vstupné napätie | 3.3/10.0/21.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikácie | PAD |
