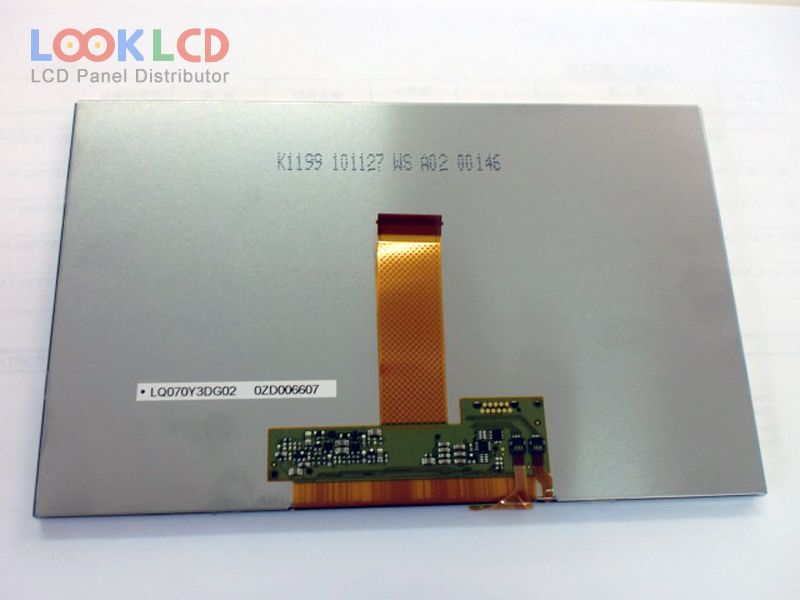

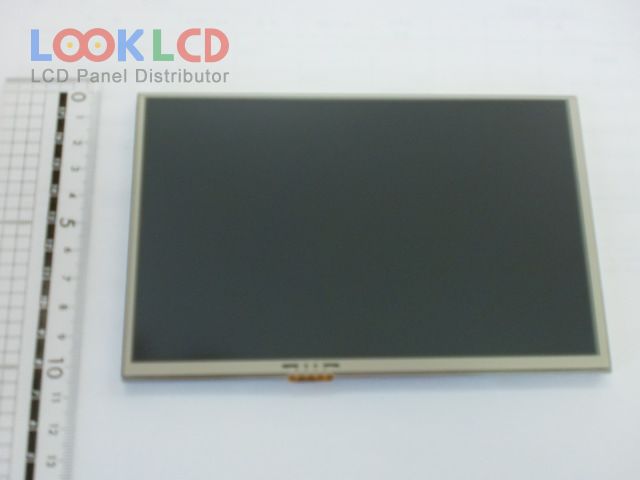

| Číslo dielu | LQ070Y3DG02 |
| Značka | SHARP |
| Veľkosť | 7.0 |
| Aplikácia | DPF |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 280 |
| CR | 450:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | SHARP |
| panelový model | LQ070Y3DG02 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800×480(RGB) , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 152.4×91.44 mm |
| obrys | 164.9×104×5.3 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 280 cd/m² (Typ.) |
| kontrastný pomer | 450:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193148% |
| Doba odozvy | 35 (Typ.)(Tr+Td) |
| pozorovací uhol | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 8S3PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 8-bit), 51 pins |
| vstupné napätie | 1.8/2.85V (Typ.)(VDDIO/VCI) |
| aplikácie | DPF |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| LQ070T5AR01 | SHARP | 7.0 | 480×234 |
| LQ070T5DG30 | SHARP | 7.0 | |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LQ070Y3DG04 | SHARP | 7.0 | 800×480 |
| LQ070Y3DG3A | SHARP | 7.0 | 800×480 |
| LQ070Y3LG05 | SHARP | 7.0 | 800×480 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| LQ070Y5DA02A | SHARP | 7.0 | 800×480 |
| LQ070Y5DG01 | SHARP | 7.0 | 800×480 |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| AT080TN03 V.7 | Innolux | 8.0 | 800×480 |
| AT090TN12 V.3 | Innolux | 9.0 | 800×480 |
| HSD090ICW1-A00 | HannStar | 9.0 | 640×234 |
| HSD101PFW3-D00 | HannStar | 10.1 | 1024×600 |
| LSA40AT9001 | Innolux | 10.4 | 800×600 |
| LTE700WQ-F05 | Samsung | 7.0 | 480×234 |
| LW700AT9901 | Innolux | 7.0 | 800×480 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
