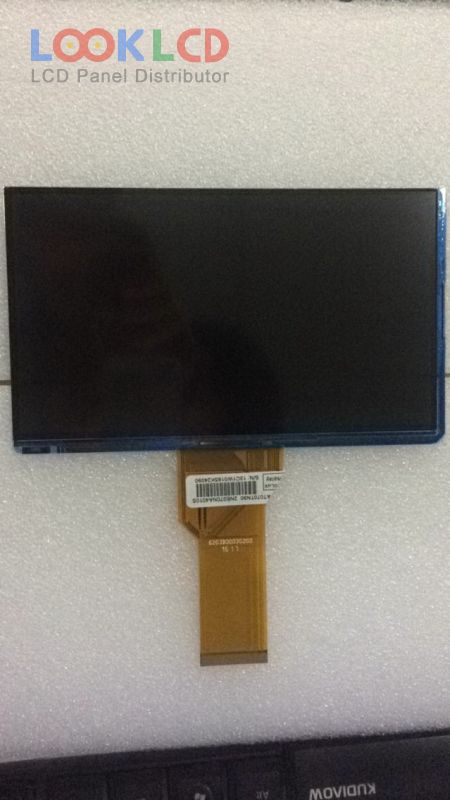

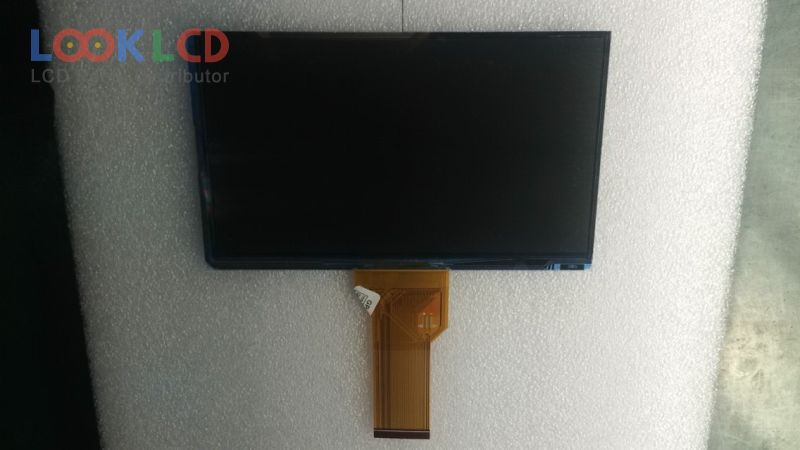

| Číslo dielu | AT070TN90 |
| Značka | Innolux |
| Veľkosť | 7.0 |
| Aplikácia | DPF |
| Rozhodnutie | 800×480 |
| Zloženie | CELL |
| Jas | 0 |
| CR | 500:1 |
| Farby | 16.7M |
| Podsvietenie | No B/L |
| Rozhranie | TTL |
| značka panelu | INNOLUX |
| panelový model | AT070TN90 |
| typ panelu | a-Si TFT-LCD , CELL |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 154.08×85.92 mm |
| obrys | 162.53×96.62 mm |
| povrch | Antiglare |
| hĺbka skla | 0.50+0.50 mm |
| priepustnosť | 5.11% (Typ.)(with Polarizer) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit) |
| Doba odozvy | 10/15 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| signálové rozhranie | Parallel RGB (1 ch, 8-bit), 50 pins |
| vstupné napätie | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikácie | DPF |
