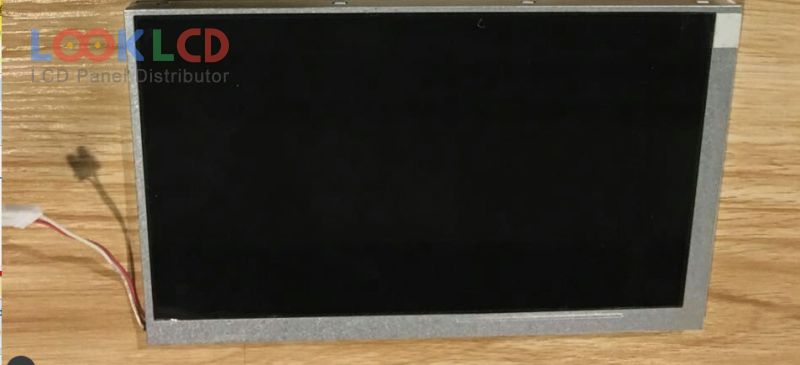

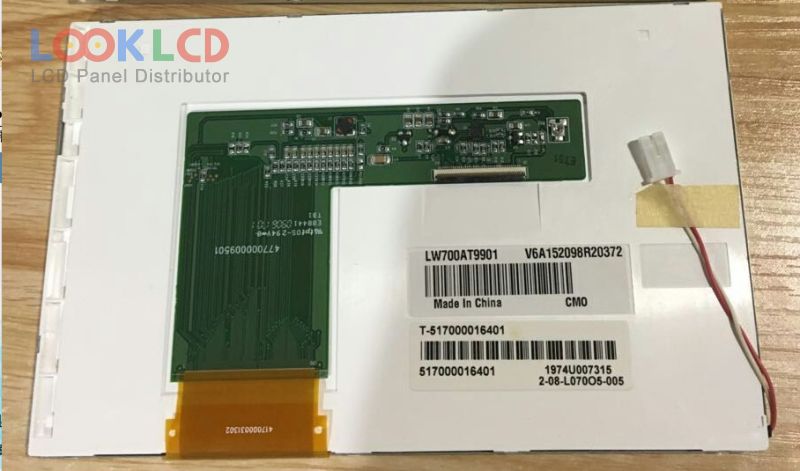

| Číslo dielu | LW700AT9901 |
| Značka | Innolux |
| Veľkosť | 7.0 |
| Aplikácia | DPF |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 400:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | CHIMEI INNOLUX |
| panelový model | LW700AT9901 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 152.4×91.44 mm |
| obrys | 165×104×7.09 mm |
| povrch | |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 400:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193145% |
| Doba odozvy | 3/15 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S8PWLEDWithout Driver |
| signálové rozhranie | TTL (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| rohs: | |
| aplikácie | DPF |
