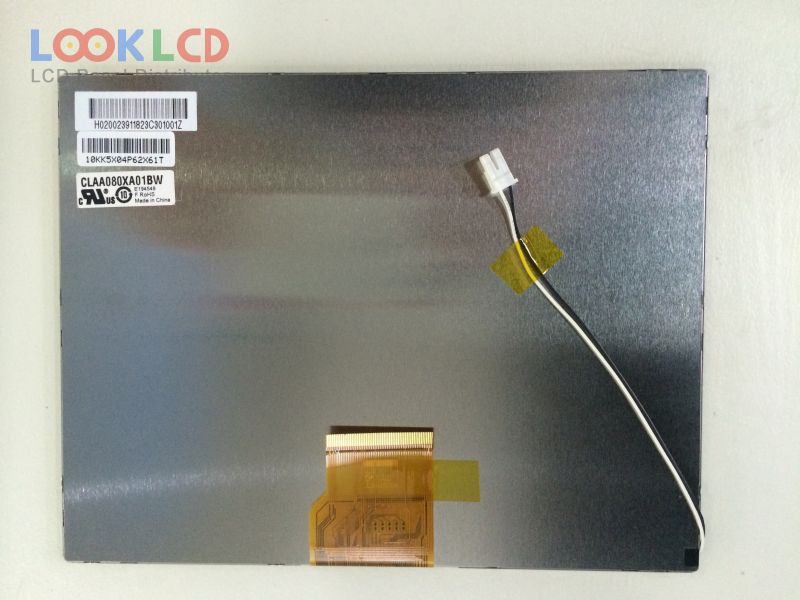

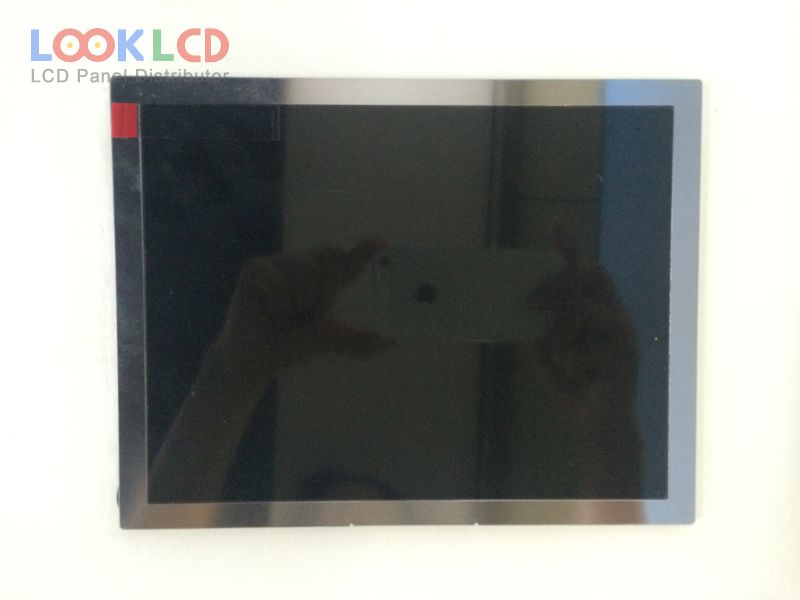

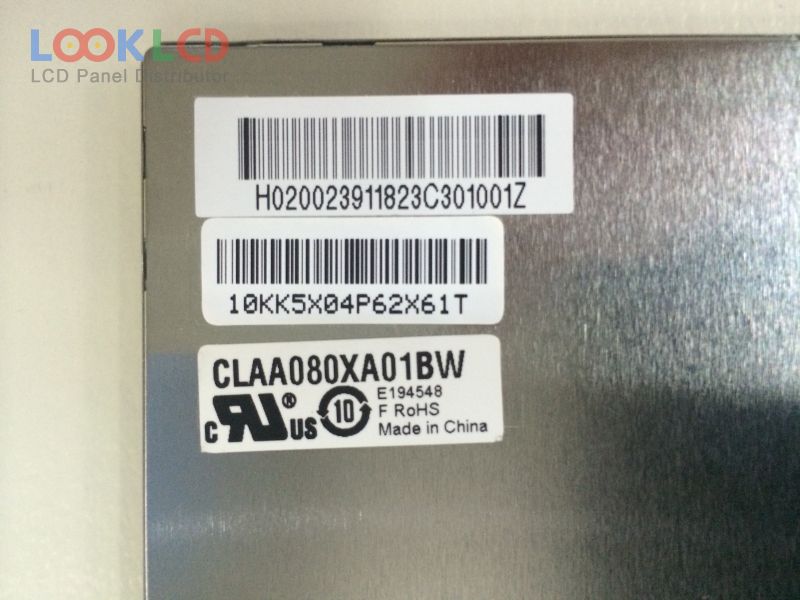

| Číslo dielu | CLAA080XA01BW |
| Značka | CPT |
| Veľkosť | 8.0 |
| Aplikácia | DPF |
| Rozhodnutie | 1024×768 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 700:1 |
| Farby | 262K/16.2M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CPT |
| panelový model | CLAA080XA01BW |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 8.0 inch |
| rozhodnutie | 1024(RGB)×768 , XGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 162.048×121.536 mm |
| obrys | 183×141×3.7 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| Doba odozvy | 20 (Typ.)(Tr+Td) |
| pozorovací uhol | 60/60/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4S7PWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 60 pins |
| vstupné napätie | 3.3/9.6/18/-6V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikácie | DPF |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| CLAA080LG01CW | CPT | 8.0 | 800×480 |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| CLAA080LJ01CW | CPT | 8.0 | 800×480 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| CLAA088WA01XN | CPT | 8.8 | 1280×480 |
| CLAA089NA0BCW | CPT | 8.9 | 1024×600 |
| A080SN01 V8 | AUO | 8.0 | 800×600 |
| A101SW02 V1 | AUO | 10.1 | 1024×600 |
| AT080TN03 V.1 | Innolux | 8.0 | 800×480 |
| EJ080NA-04C | Innolux | 8.0 | 1024×768 |
| HJ080IA-01F | Innolux | 8.0 | 1024×768 |
| LB070WV1-TD17 | LG Display | 7.0 | 800×480 |
| LB080WV3-B1 | LG Display | 8.0 | 800×480 |
| LSA40AT9001 | Innolux | 10.4 | 800×600 |
| LTE700WQ-F05 | Samsung | 7.0 | 480×234 |
| TM104SDHG30 | Tianma | 10.4 | 800×600 |
