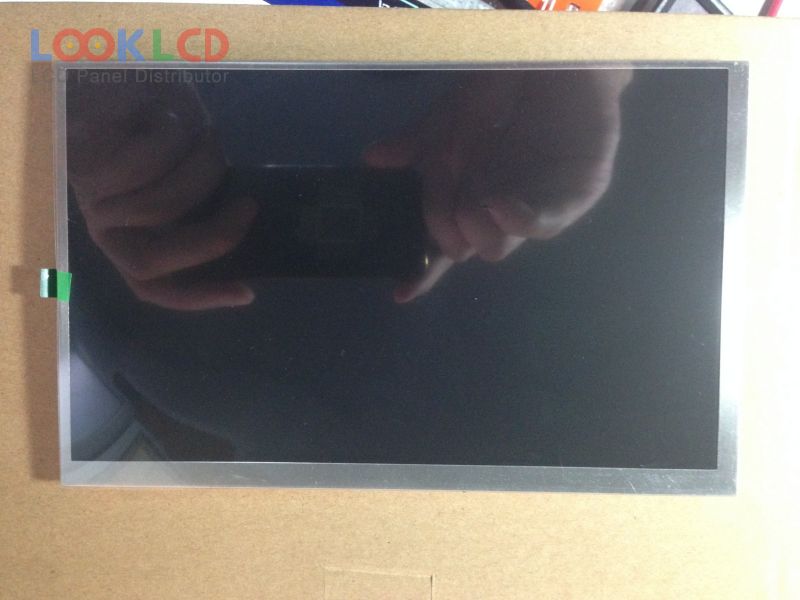

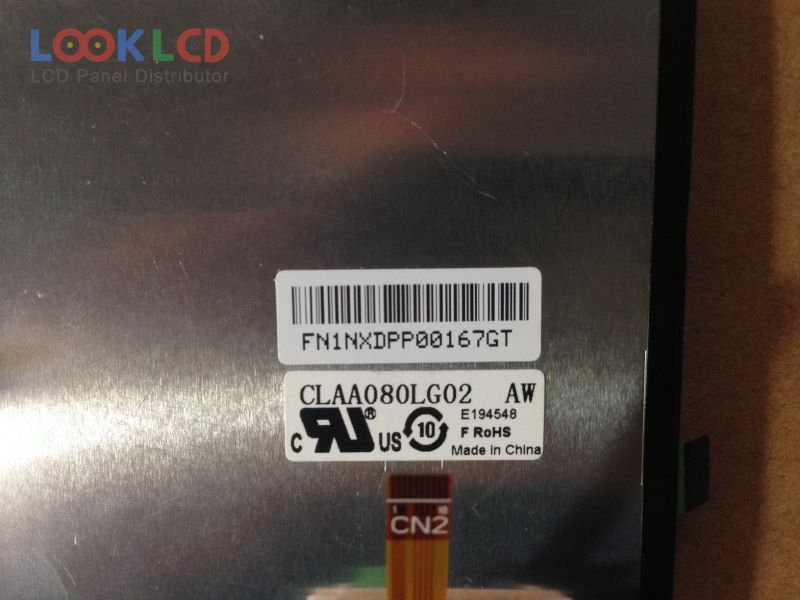

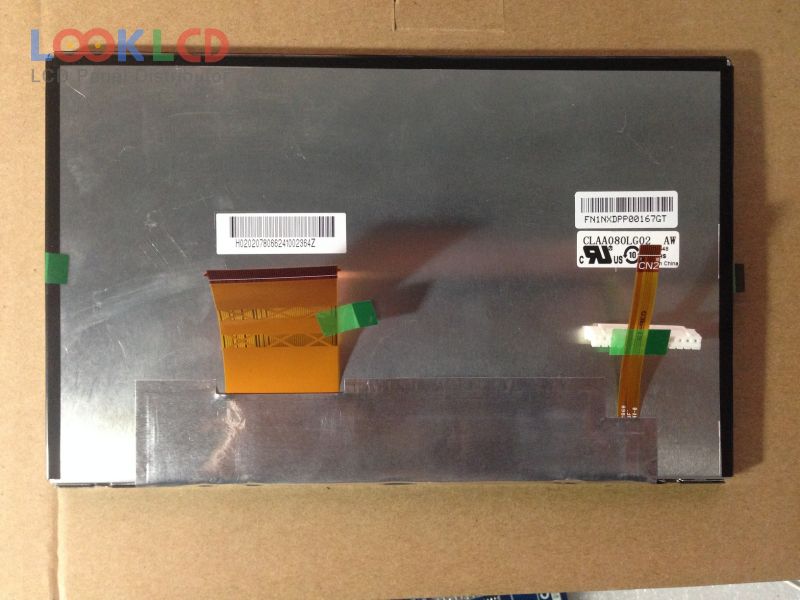

| Číslo dielu | CLAA080LG02AW |
| Značka | CPT |
| Veľkosť | 8.0 |
| Aplikácia | CNS |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 550 |
| CR | 700:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | CPT |
| panelový model | CLAA080LG02AW |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 8.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 175.2×105.12 mm |
| obrys | 186.5×117.22×6.73 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 550 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193171% |
| Doba odozvy | 12 (Typ.)(Tr+Td) |
| pozorovací uhol | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 9S4PWLEDWithout Driver |
| signálové rozhranie | TTL (1 ch, 6-bit), 60 pins |
| vstupné napätie | 3.3/12.0/18.0/-6.0V (Typ.)(VCC/VDDA/VGH/VGL) |
| aplikácie | CNS |
