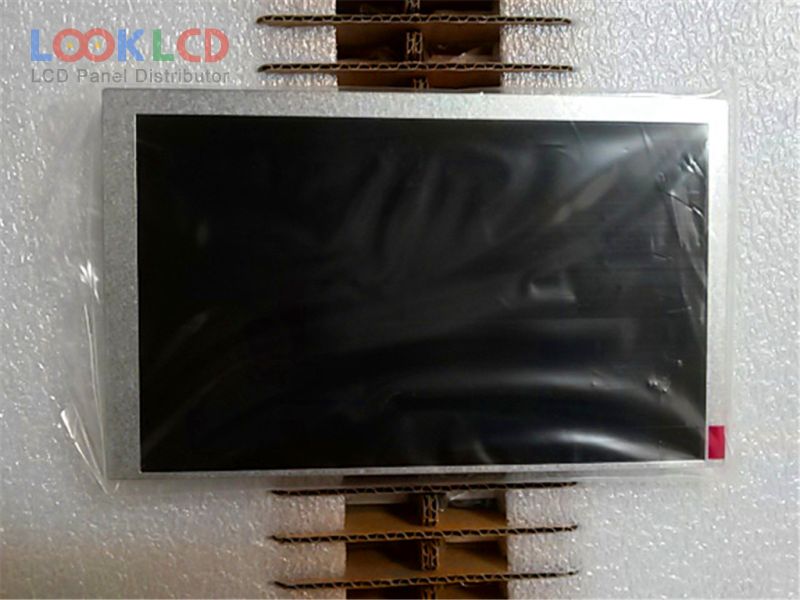

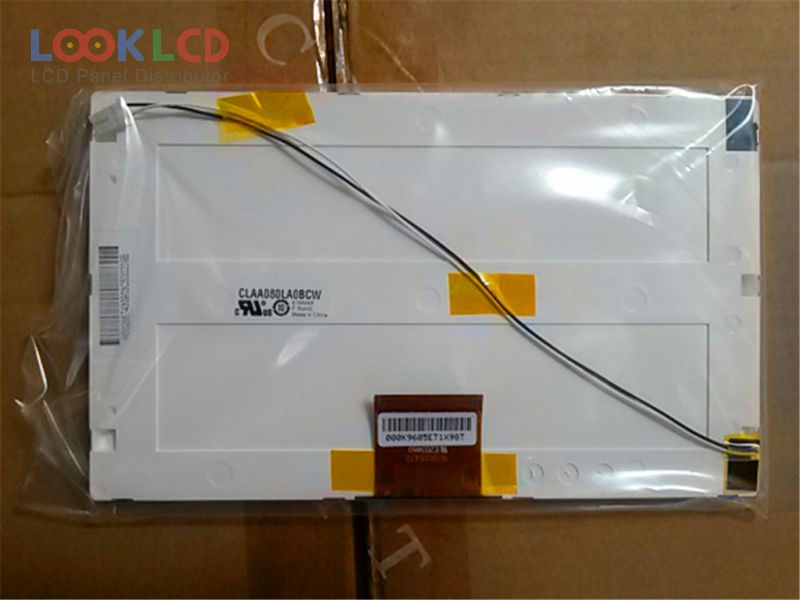

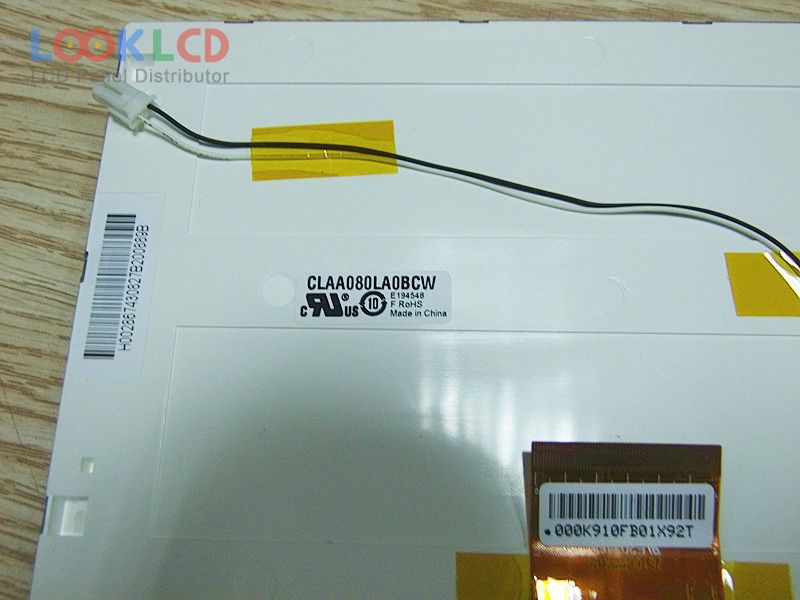

| Číslo dielu | CLAA080LA0BCW |
| Značka | CPT |
| Veľkosť | 8.0 |
| Aplikácia | DPF |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 500:1 |
| Farby | 262K/16.2M |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | CPT |
| panelový model | CLAA080LA0BCW |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 8.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 172.8×103.68 mm |
| obrys | 192.8×116.9×6.7 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K/16.2M (6-bit / 6-bit + FRC) |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S6PWLEDWithout Driver |
| signálové rozhranie | TTL (1 ch, 6/8-bit), 60 pins |
| vstupné napätie | 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikácie | DPF |
