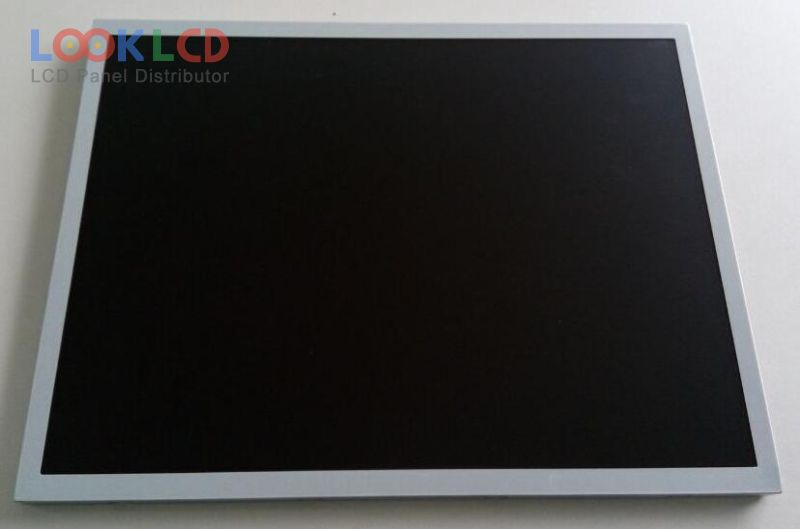

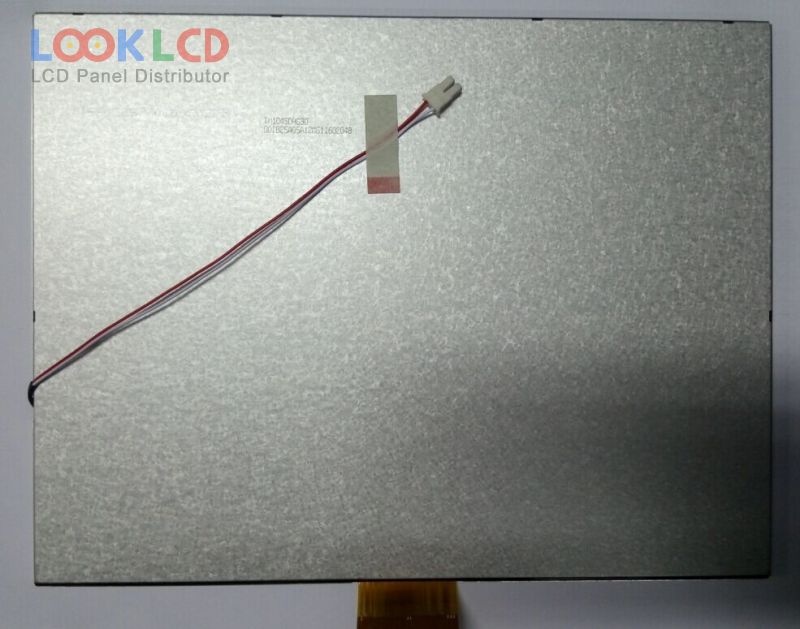

| Číslo dielu | TM104SDHG30 |
| Značka | Tianma |
| Veľkosť | 10.4 |
| Aplikácia | DPF |
| Rozhodnutie | 800×600 |
| Zloženie | LCM |
| Jas | 350 |
| CR | 500:1 |
| Farby | 262K/16.7M |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | TIANMA |
| panelový model | TM104SDHG30 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.4 inch |
| rozhodnutie | 800(RGB)×600 , SVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 211.2×158.4 mm |
| obrys | 228.4×175.4 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odozvy | 10/15 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S12PWLEDEmbedded (LED Driver) |
| signálové rozhranie | Parallel RGB (1 ch, 6/8-bit), 60 pins |
| vstupné napätie | 3.3/11.0/21.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikácie | DPF |
