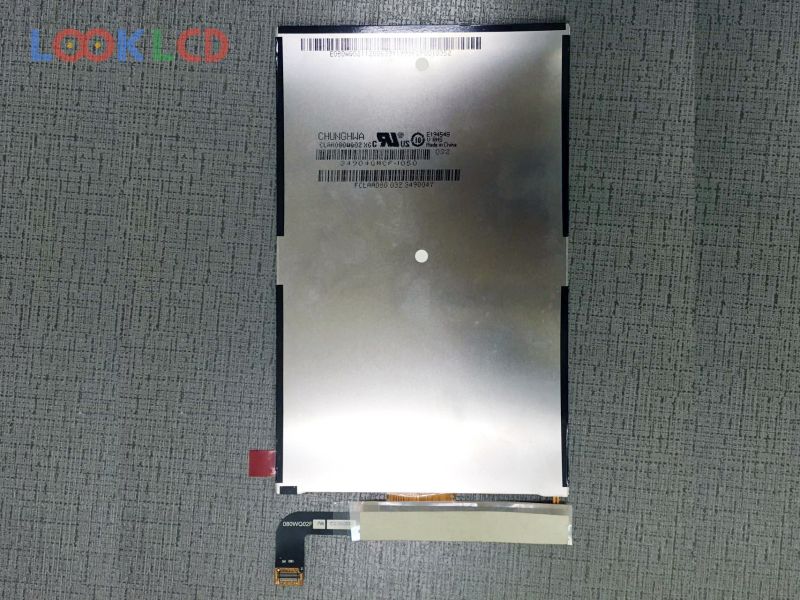

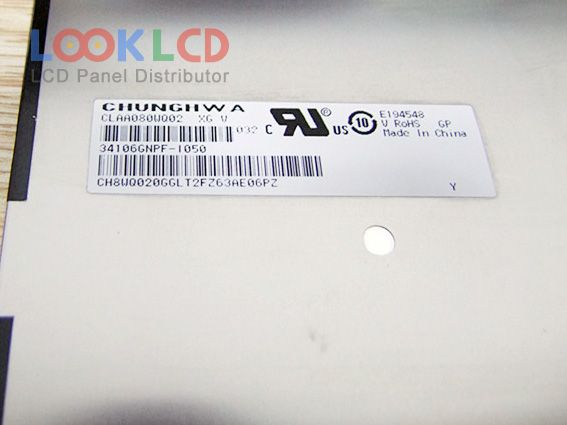

| Číslo dielu | CLAA080WQ02 XG |
| Značka | CPT |
| Veľkosť | 8.0 |
| Aplikácia | PAD |
| Rozhodnutie | 800×1280 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 800:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | MIPI |
| značka panelu | CPT |
| panelový model | CLAA080WQ02 XG |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 8.0 inch |
| rozhodnutie | 800(RGB)×1280 , WXGA |
| režim zobrazenia | HFFS, Normally Black, Transmissive |
| aktívna oblasť | 107.64×172.224 mm |
| obrys | 114.6×184.1×3.65 mm |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193150% |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S7PWLEDWithout Driver |
| signálové rozhranie | MIPI (4 data lanes), 34 pins |
| vstupné napätie | 1.8/3.3V (Typ.)(VCCI/VDDI) |
| aplikácie | PAD |
