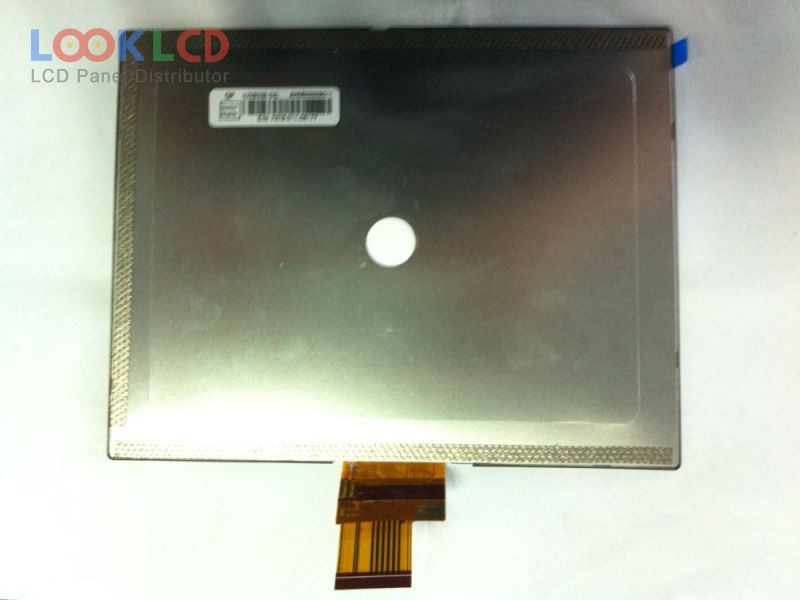

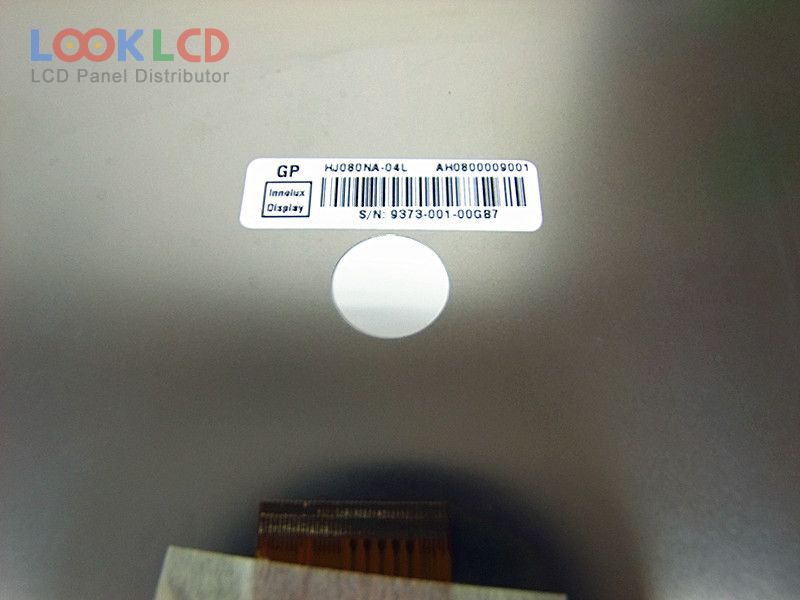

| Číslo dielu | HJ080NA-04L |
| Značka | Innolux |
| Veľkosť | 8.0 |
| Aplikácia | PAD |
| Rozhodnutie | 1024×768 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 700:1 |
| Farby | 262K/16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | INNOLUX |
| panelový model | HJ080NA-04L |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 8.0 inch |
| rozhodnutie | 1024(RGB)×768 , XGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 162.048×121.536 mm |
| obrys | 174×136×2.65 mm |
| povrch | Clear |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odozvy | 6/14 (Typ.)(Tr/Td) |
| pozorovací uhol | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S7PWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 40 pins |
| vstupné napätie | 3.3/11.5/22/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikácie | PAD |
| C080VW04 V0 | AUO | 8.0 | 800×480 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| HJ080IA-01B | Innolux | 8.0 | 1024×768 |
| HJ080IA-01E | Innolux | 8.0 | 1024×768 |
| HJ080IA-01F | Innolux | 8.0 | 1024×768 |
| HJ080NA-04L | Innolux | 8.0 | 1024×768 |
| LM64P122 | SHARP | 8.0 | 640×480 |
| LQ080T5GG01B | SHARP | 8.0 | 480×234 |
| LQ080V3DG01 | SHARP | 8.0 | 640×480 |
| PD080SY1 | E Ink | 8.0 | 800×600 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| HE070IA-04F | Innolux | 7.0 | 800×1280 |
| HT12X21-221 | HYDIS | 12.1 | 1024×768 |
| HV101WU1-1E3 | HYDIS | 10.1 | 1920×1200 |
| LP097X02-SLN1 | LG Display | 9.7 | 1024×768 |
| TFTMD070021 | JDI | 7.0 | 1200×1920 |
| TM097TDH01 | Tianma | 9.7 | 1024×768 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
| TPF0702001N | JDI | 7.0 | 1200×1920 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
