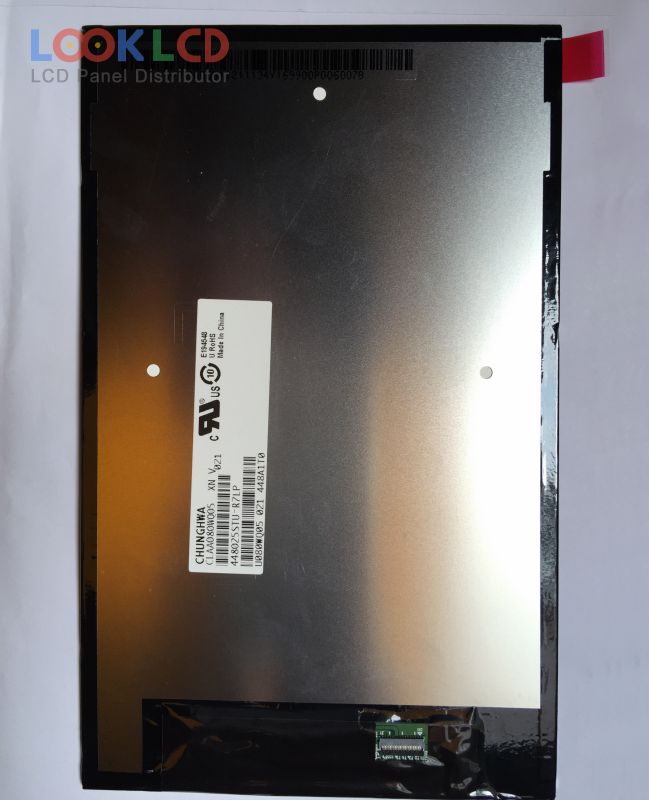

| Číslo dielu | CLAA080WQ05 |
| Značka | CPT |
| Veľkosť | 8.0 |
| Aplikácia | PAD |
| Rozhodnutie | 800×1280 |
| Zloženie | LCM |
| Jas | 350 |
| CR | 800:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | MIPI |
| značka panelu | CPT |
| panelový model | CLAA080WQ05 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 8.0 inch |
| rozhodnutie | 800(RGB)×1280 , WXGA |
| režim zobrazenia | HFFS, Normally Black, Transmissive |
| aktívna oblasť | 107.64×172.224 mm |
| obrys | 114.6×184.7×4.56 mm |
| povrch | Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193158% |
| Doba odozvy | 20 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S7PWLEDWithout Driver |
| signálové rozhranie | MIPI (4 data lanes), 31 pins |
| vstupné napätie | 1.8/3.3V (Typ.)(VCCI/VDDI) |
| aplikácie | PAD |
| CLAA043JE01CW | CPT | 4.3 | 480×272 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| CLAA070WA03 | CPT | 7.0 | 480×234 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| CLAA080XA01BW | CPT | 8.0 | 1024×768 |
| B070EAN01.6 | AUO | 7.0 | 800×1280 |
| BP101WX1-400 | BOE | 10.1 | 1280×800 |
| HSD101PWW1-B00-C11 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-G10 | HannStar | 10.1 | 1280×800 |
| HV121P01-100 | HYDIS | 12.1 | 1400×1050 |
| HV121WX6-110 | HYDIS | 12.1 | 1280×800 |
| HX121WX1-111 | HYDIS | 12.1 | 1280×800 |
| LD089WX1-SL03 | LG Display | 8.9 | 1280×768 |
| LP101WH4-SLA6 | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLAA | LG Display | 10.1 | 1366×768 |
