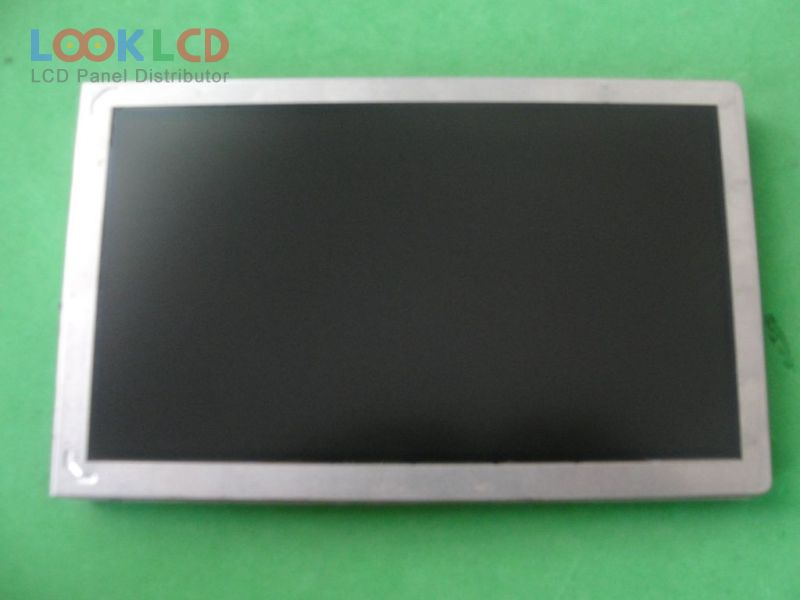

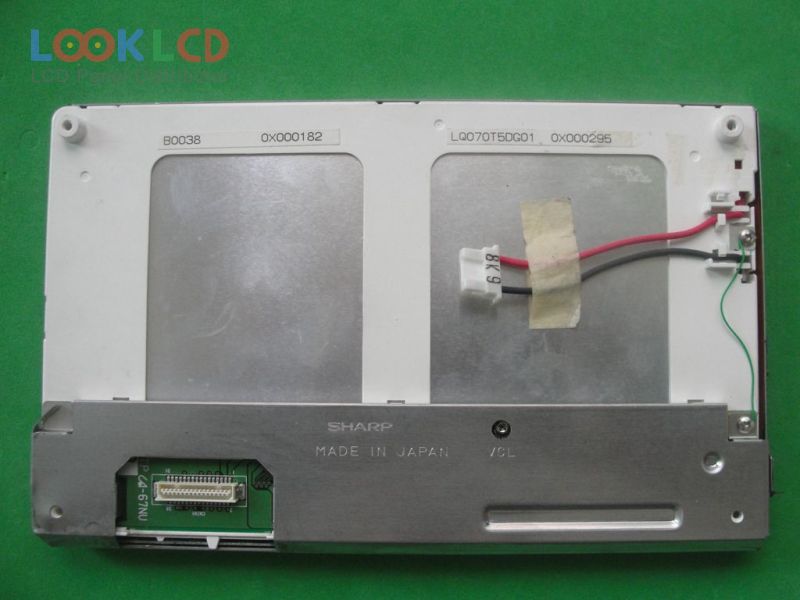

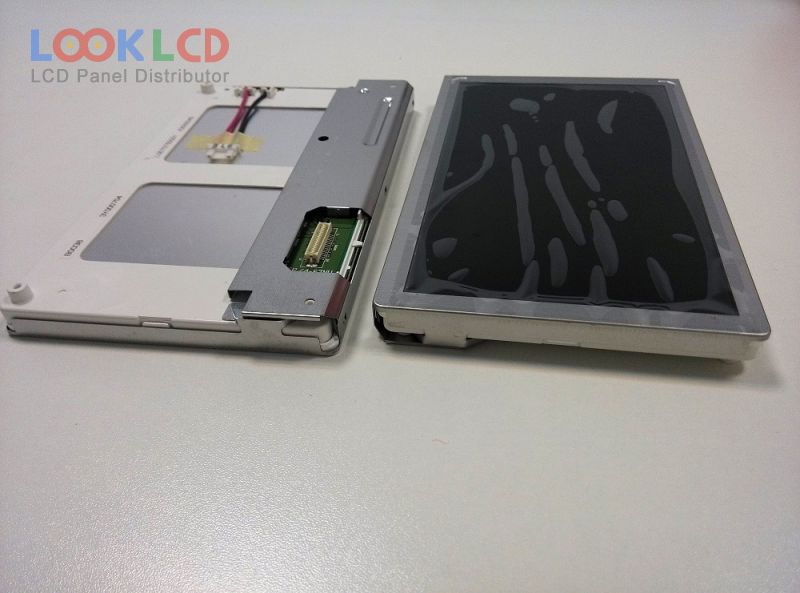

| Číslo dielu | LQ070T5DG01 |
| Značka | SHARP |
| Veľkosť | 7.0 |
| Aplikácia | CNS |
| Rozhodnutie | 854×480 |
| Zloženie | LCM |
| Jas | 410 |
| CR | 60:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | TTL |
| značka panelu | SHARP |
| panelový model | LQ070T5DG01 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 854(RGB)×480 , FWVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 155×87.12 mm |
| obrys | 176.9×109.3 mm |
| povrch | Antiglare |
| jas | 410 cd/m² (Typ.) |
| kontrastný pomer | 60:1 (Min.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 30/50 (Typ.)(Tr/Td) |
| pozorovací uhol | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 6-bit), 31 pins |
| vstupné napätie | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| aplikácie | CNS |
