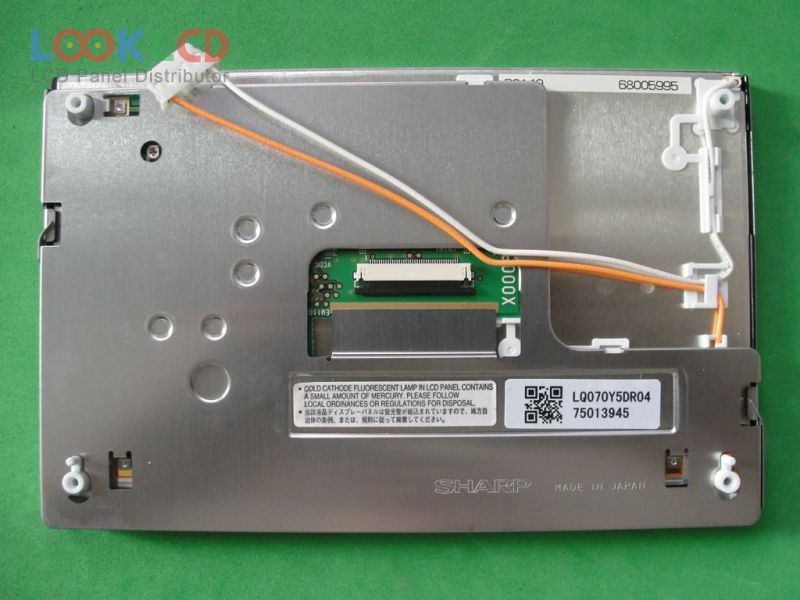

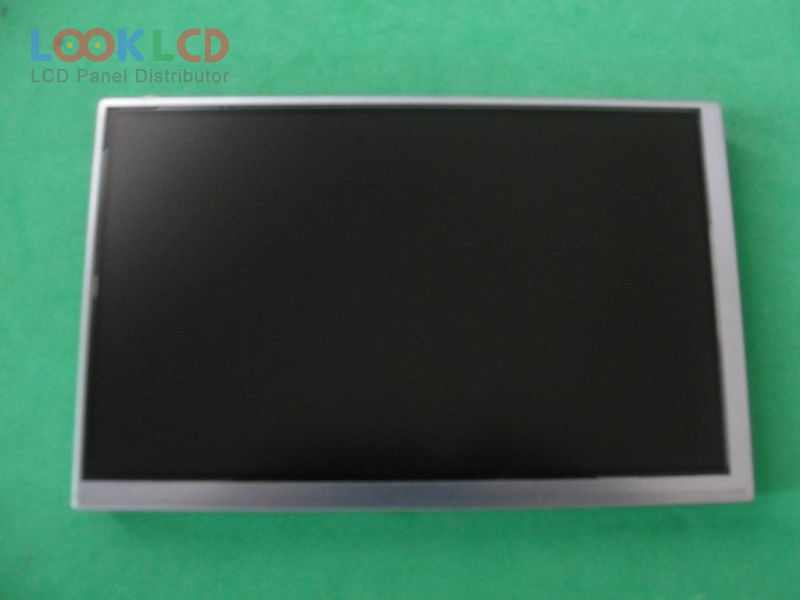

| Číslo dielu | LQ070Y5DR04 |
| Značka | SHARP |
| Veľkosť | 7.0 |
| Aplikácia | CNS |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 100:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | TTL |
| značka panelu | SHARP |
| panelový model | LQ070Y5DR04 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 152.4×91.44 mm |
| obrys | 165×105.5×15.3 mm |
| povrch | Antiglare, Antireflection |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 100:1 (Min.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 30/50 (Typ.)(Tr/Td) |
| pozorovací uhol | 65/65/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.)(VCC) |
| rohs: | |
| aplikácie | CNS |
| LQ070M1SX01 | SHARP | 7.0 | 1200×1920 |
| LQ070S1DW01 | SHARP | 7.0 | 600×800 |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LQ070Y3DG01 | SHARP | 7.0 | 800×480 |
| LQ070Y3DG04 | SHARP | 7.0 | 800×480 |
| LQ070Y3DG3A | SHARP | 7.0 | 800×480 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| LQ070Y5DG20 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG30 | SHARP | 7.0 | 800×480 |
| LQ070Y5DR04 | SHARP | 7.0 | 800×480 |
| A070FW03 V1 | AUO | 7.0 | 480×234 |
| AM-800480-050D | Other | 5.0 | 800×480 |
| CLAA050JA01CT | CPT | 5.0 | 480×272 |
| FG0700K5DSSWBG01 | Data Image | 7.0 | 800×480 |
| G154I1-L01 | Innolux | 15.4 | 1280×800 |
| L5F30947T0A | Epson | 6.5 | 800×480 |
| LB040Q02-TD01 | LG Display | 4.0 | 320×240 |
| LTA065B0F0F | TOSHIBA | 6.5 | 800×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| TX31D16VM2BAA | KOE | 12.2 | 1024×310 |
