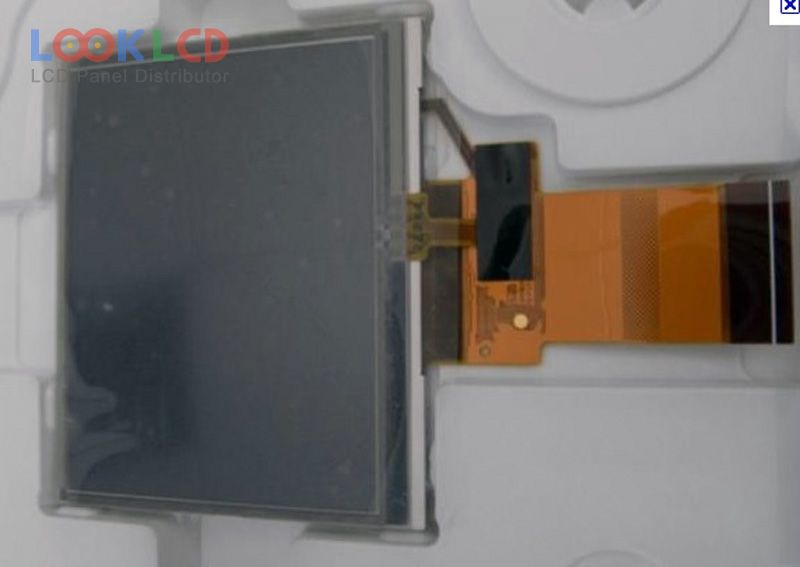

| Číslo dielu | LQ035Q1DG02 |
| Značka | SHARP |
| Veľkosť | 3.5 |
| Aplikácia | PND |
| Rozhodnutie | 320×240 |
| Zloženie | LCM |
| Jas | 320 |
| CR | 300:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | SHARP |
| panelový model | LQ035Q1DG02 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 3.5 inch |
| rozhodnutie | 320(RGB)×240 , QVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 70.56×52.92 mm |
| obrys | 76.9×63.9×4.45 mm |
| povrch | Antiglare, Hard coating (2H) |
| jas | 320 cd/m² (Typ.) |
| kontrastný pomer | 300:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193150% |
| Doba odozvy | 30/30 (Typ.)(Tr/Td) |
| pozorovací uhol | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 8-bit) + SPI, 71 pins |
| vstupné napätie | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| rohs: | |
| aplikácie | PND |
