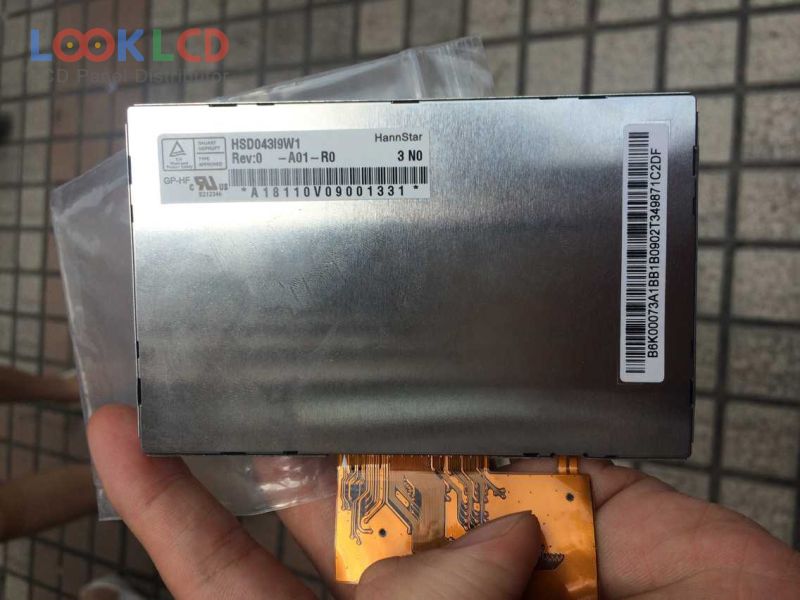

| Číslo dielu | HSD043I9W1-A01 |
| Značka | HannStar |
| Veľkosť | 4.3 |
| Aplikácia | PND |
| Rozhodnutie | 480×272 |
| Zloženie | LCM |
| Jas | 500 |
| CR | 600:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | HannStar |
| panelový model | HSD043I9W1-A01 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 4.3 inch |
| rozhodnutie | 480(RGB)×272 , WQVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 95.04×53.856 mm |
| obrys | 105.5×67.2 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 500 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit) |
| Doba odozvy | 3/7 (Typ.)(Tr/Td) |
| pozorovací uhol | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 6S2PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.)(VDD) |
| aplikácie | PND |
