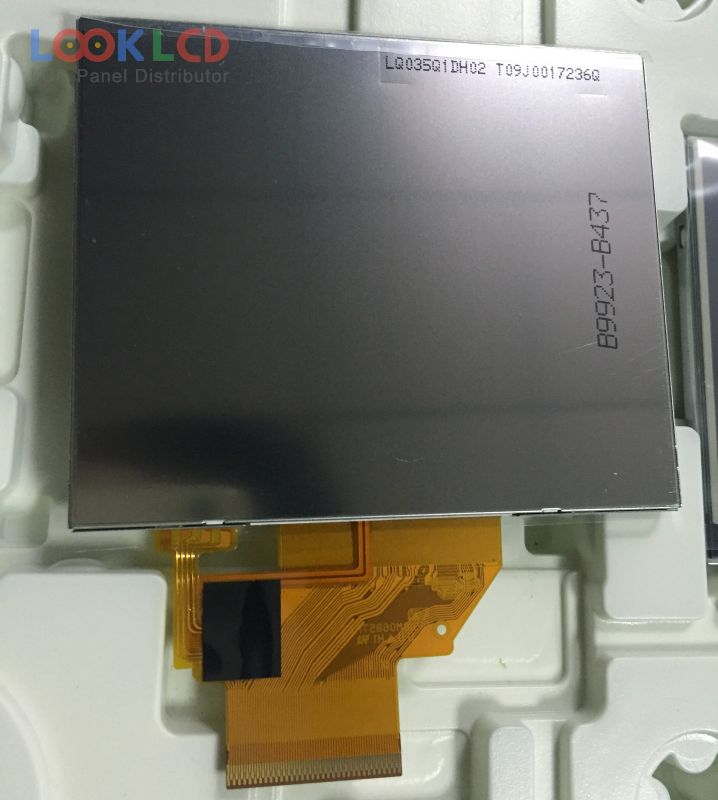

| Číslo dielu | LQ035Q1DH02 |
| Značka | SHARP |
| Veľkosť | 3.5 |
| Aplikácia | DSC |
| Rozhodnutie | 320×240 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 300:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | SHARP |
| panelový model | LQ035Q1DH02 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 3.5 inch |
| rozhodnutie | 320(RGB)×240 , QVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 70.56×52.92 mm |
| obrys | 76.9×63.9×4.7 mm |
| povrch | Antiglare, Hard coating (2H) |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 300:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193148% |
| Doba odozvy | 30/30 (Typ.)(Tr/Td) |
| pozorovací uhol | 45/45/20/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 7S1PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| vstupné napätie | 1.8/3.3V (Typ.)(VDDIO/VCI) |
| aplikácie | DSC |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LQ035LC111 | Innolux | 3.5 | 320×240 |
| LQ035NC111 | Innolux | 3.5 | 320×240 |
| LQ035NC211 | Innolux | 3.5 | 320×240 |
| LQ035Q1DH02 | SHARP | 3.5 | 320×240 |
| LQ035Q2DD56 | SHARP | 3.5 | 320×240 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q7DB02R | SHARP | 3.5 | 240×320 |
| LQ035Q7DB04 | SHARP | 3.5 | 240×320 |
| LQ035Q7DB05 | SHARP | 3.5 | 240×320 |
| A027DN03 V7 | AUO | 2.7 | 320×240 |
| A027DN04 V7 | AUO | 2.7 | 320×240 |
| ACX385AKM-7 | SONY | 2.5 | 640×240 |
| LQ025A3DD01 | SHARP | 2.5 | 480×240 |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LS020A8DX02 | SHARP | 2.0 | 320×240 |
| PA025XSF | E Ink | 2.5 | 480×234 |
| TD030WHEA1 | TPO | 3.0 | 320×240 |
| TM027CDH04 | Tianma | 2.7 | 320×240 |
| UP018D11 | UNIPAC | 1.8 | 528×220(dot) |
