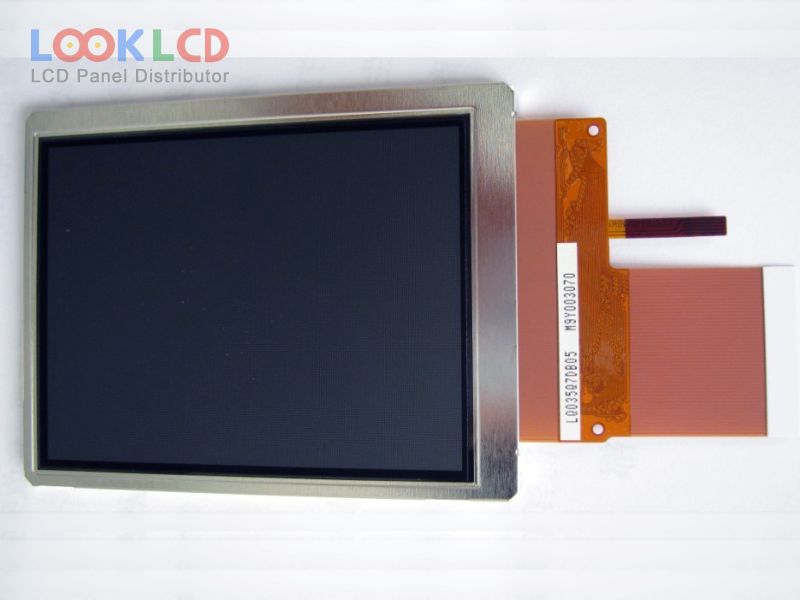

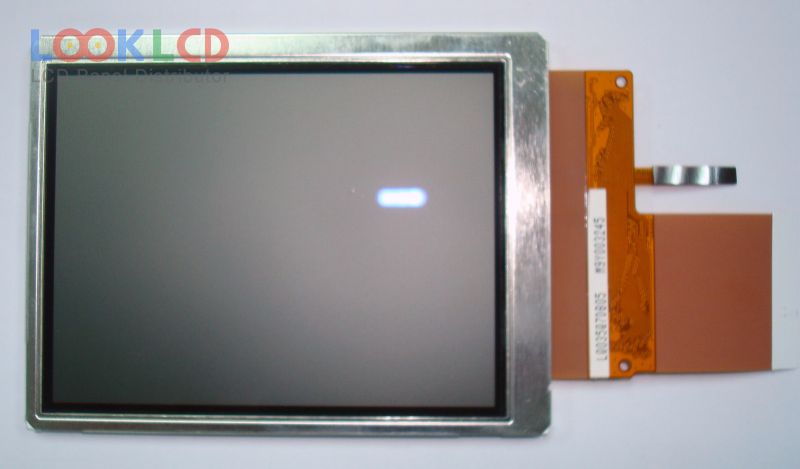

| Číslo dielu | LQ035Q7DB05 |
| Značka | SHARP |
| Veľkosť | 3.5 |
| Aplikácia | HHP |
| Rozhodnutie | 240×320 |
| Zloženie | LCM |
| Jas | 160 |
| CR | 85:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | SHARP |
| panelový model | LQ035Q7DB05 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 3.5 inch |
| rozhodnutie | 240(RGB)×320 , QVGA |
| režim zobrazenia | TN, Normally White, Transflective |
| aktívna oblasť | 53.64×71.52 mm |
| obrys | 65×85×3.7 mm |
| povrch | Hard coating (3H) |
| jas | 160 cd/m² (Typ.) |
| kontrastný pomer | 85:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 30/50 (Typ.)(Tr/Td) |
| pozorovací uhol | 40/40/40/50 (Typ.)(CR≥2)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 6-bit), 50 pins |
| vstupné napätie | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
| aplikácie | HHP |
