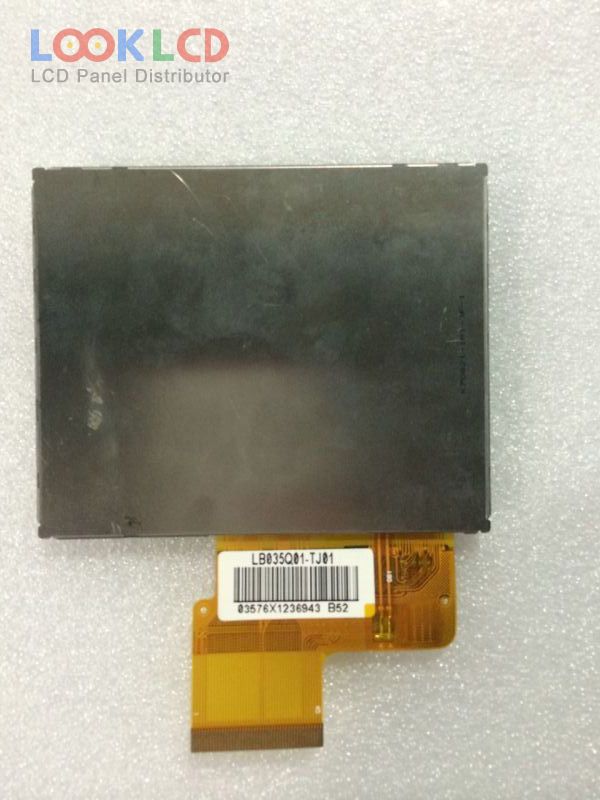

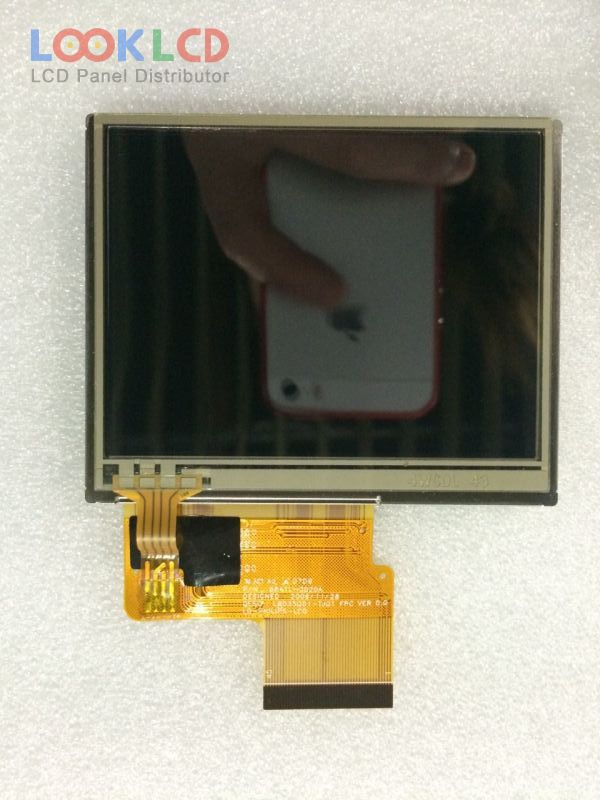

| Číslo dielu | LB035Q01-TJ01 |
| Značka | LG Display |
| Veľkosť | 3.5 |
| Aplikácia | PND |
| Rozhodnutie | 320×240 |
| Zloženie | CELL |
| Jas | 0 |
| CR | 300:1 |
| Farby | 16.7M |
| Podsvietenie | No B/L |
| Rozhranie | TTL |
| značka panelu | LG.Philips LCD |
| panelový model | LB035Q01-TJ01 |
| typ panelu | a-Si TFT-LCD , CELL |
| veľkosť panelu | 3.5 inch |
| rozhodnutie | 320(RGB)×240 , QVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 70.08×52.56 mm |
| obrys | 78.1×62.95×1.53 mm |
| povrch | Hard coating |
| kontrastný pomer | 300:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit) |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 70Hz |
| signálové rozhranie | TTL (1 ch, 8-bit), 45 pins |
| vstupné napätie | 3.3/5.0V (Typ.)(VDD/AVDD) |
| rohs: | |
| aplikácie | PND |
