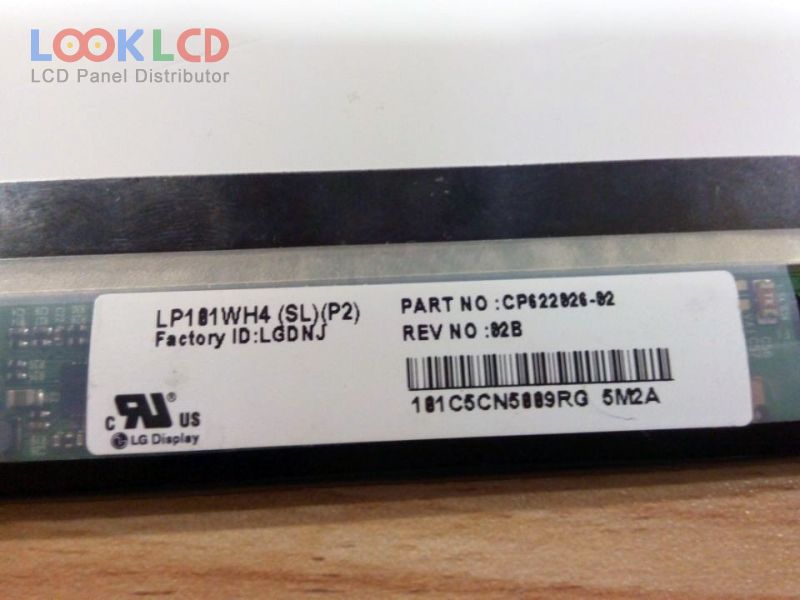

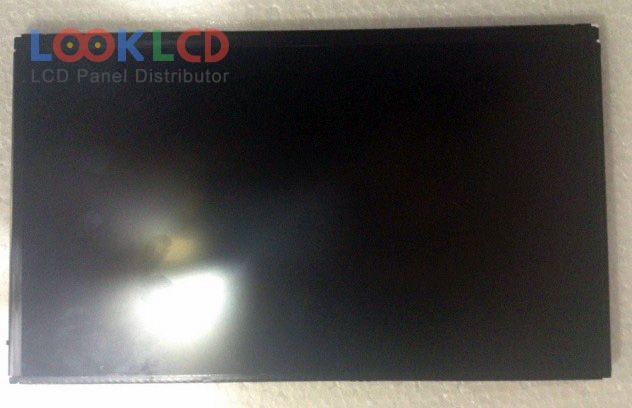

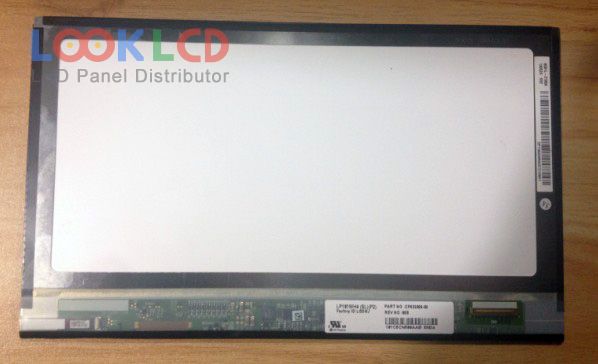

| Číslo dielu | LP101WH4-SLP2 |
| Značka | LG Display |
| Veľkosť | 10.1 |
| Aplikácia | PAD |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 380 |
| CR | 700:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | LG Display |
| panelový model | LP101WH4-SLP2 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.1 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | IPS, Normally Black, Transmissive |
| aktívna oblasť | 222.52×125.11 mm |
| obrys | 232.8×138.15×4.35 mm |
| povrch | Antiglare, Hard coating (3H), Antireflection |
| jas | 380 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193150% |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 8-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | PAD |
