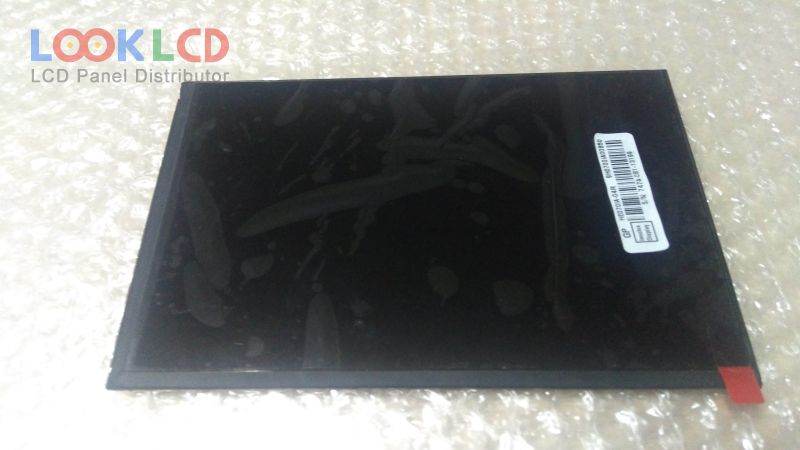

| Číslo dielu | HE070IA-04R |
| Značka | Innolux |
| Veľkosť | 7.0 |
| Aplikácia | PAD |
| Rozhodnutie | 800×1280 |
| Zloženie | CELL |
| Jas | 0 |
| CR | 800:1 |
| Farby | 16.7M |
| Podsvietenie | No B/L |
| Rozhranie | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | HE070IA-04R |
| typ panelu | a-Si TFT-LCD , CELL |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800(RGB)×1280 , WXGA |
| režim zobrazenia | IPS, Normally Black, Transmissive |
| aktívna oblasť | 94.2×150.72 mm |
| obrys | 101.5×159.52×1.27 mm |
| povrch | Hard coating |
| hĺbka skla | 0.50+0.50 mm |
| priepustnosť | 3.6% (Typ.)(with Polarizer) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193160% |
| Doba odozvy | 50 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| signálové rozhranie | LVDS (1 ch, 8-bit), 40 pins |
| vstupné napätie | 3.3/8.8/-7.0/22V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikácie | PAD |
