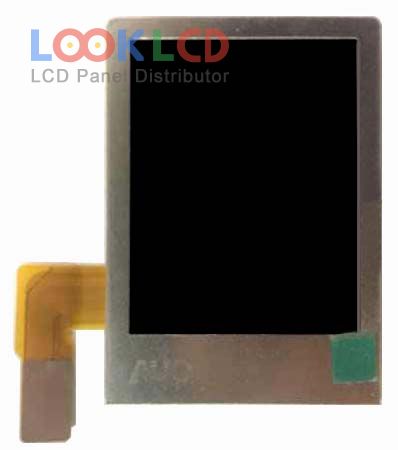

| Číslo dielu | H020HD01 V0 |
| Značka | AUO |
| Veľkosť | 2.0 |
| Aplikácia | MPH |
| Rozhodnutie | 176×220 |
| Zloženie | OLED |
| Jas | 105 |
| CR | 10000:1 |
| Farby | 65K/262K |
| Podsvietenie | self |
| Rozhranie | CPU |
| značka panelu | AUO |
| panelový model | H020HD01 V0 |
| typ panelu | AM-OLED , OLED |
| veľkosť panelu | 2.0 inch |
| rozhodnutie | 176(RGB)×220 , QCIF+ |
| aktívna oblasť | 31.152×38.94 mm |
| obrys | 39.52×53.2 mm |
| povrch | Hard coating |
| jas | 105 cd/m² (Typ.) |
| kontrastný pomer | 10000 : 1 (Typ.) |
| zobraziť farby | 65K/262K (6-bit), CIE193168% |
| pozorovací uhol | 30/30/30/30 (Typ.)(CR≥2)(L/R/U/D) |
| vodič ic | Built-in uPD161621 + uPD161644 |
| signálové rozhranie | CPU, 34 pins |
| vstupné napätie | 3.3/-7.0V (Typ.)(VCC/VSS) |
| aplikácie | MPH |
