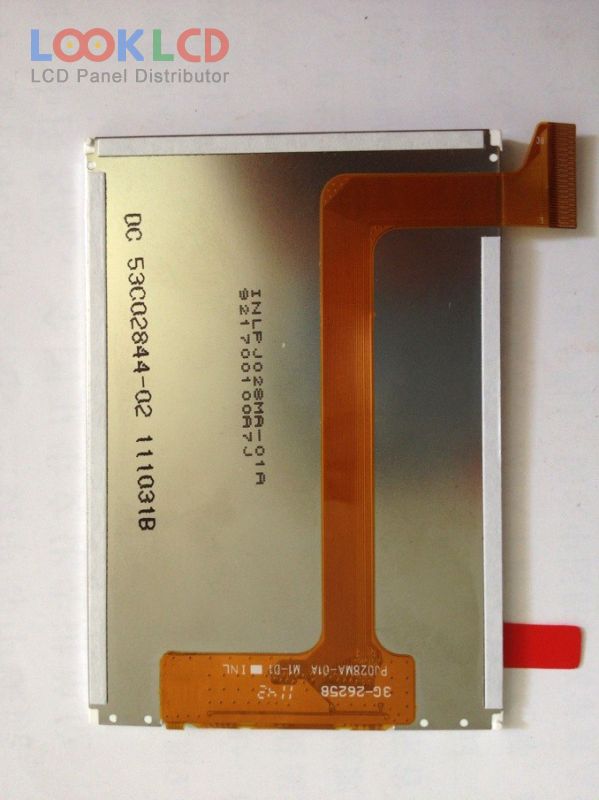

| Číslo dielu | PJ028MA-01A |
| Značka | Innolux |
| Veľkosť | 2.8 |
| Aplikácia | MPH |
| Rozhodnutie | 240×320 |
| Zloženie | LCM |
| Jas | 290 |
| CR | 450:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | CHIMEI INNOLUX |
| panelový model | PJ028MA-01A |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 2.8 inch |
| rozhodnutie | 240(RGB)×320 , QVGA |
| režim zobrazenia | Normally Black, Transmissive |
| aktívna oblasť | 43.2×57.6 mm |
| obrys | 47.74×67.95×2.3 mm |
| povrch | |
| jas | 290 cd/m² (Typ.) |
| kontrastný pomer | 450:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193170% |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 80Hz |
| typ lampy | 1S4PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| vstupné napätie | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| aplikácie | MPH |
