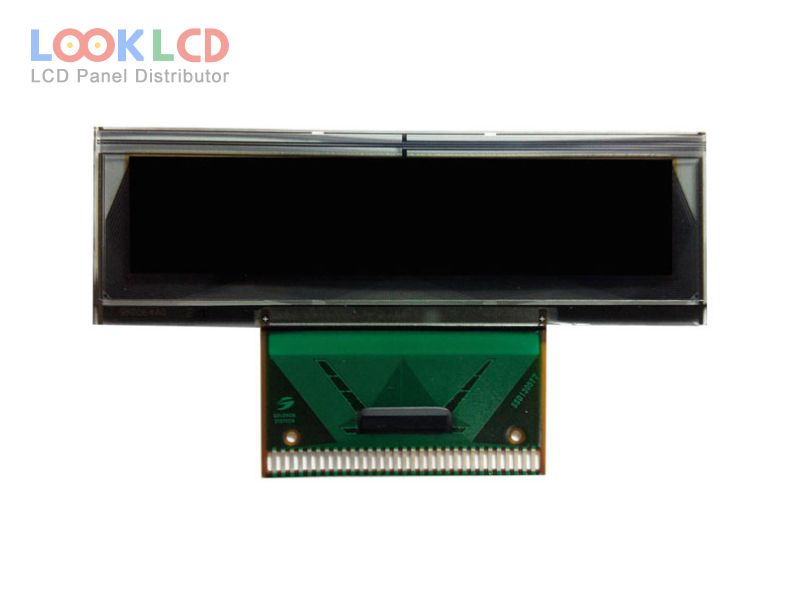

| Číslo dielu | OEL9M0064-Y-E |
| Značka | Other |
| Veľkosť | 2.0 |
| Aplikácia | IA |
| Rozhodnutie | 128×32 |
| Zloženie | OLED |
| Jas | 80 |
| CR | 10000:1 |
| Farby | Mono(Yellow) |
| Podsvietenie | self |
| Rozhranie | CPU/SPI/I²C |
| značka panelu | TRULY |
| panelový model | OEL9M0064-Y-E |
| typ panelu | PM-OLED , OLED |
| veľkosť panelu | 2.0 inch |
| rozhodnutie | 128×32 |
| aktívna oblasť | 50.535×10.695 mm |
| obrys | 59×18.86×1.6 mm |
| povrch | |
| jas | 80 cd/m² (Typ.) |
| kontrastný pomer | 10000 : 1 (Min.) |
| zobraziť farby | Mono(Yellow) (1-bit) |
| pozorovací uhol | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvencia | 100Hz |
| vodič ic | TAB Built-in SSD1305T7R1 |
| signálové rozhranie | 8-bit 6800/8080 parallel, SPI, I²C, 31 pins |
| vstupné napätie | 3.0/12.0V (Typ.)(VDD/VCC) |
| aplikácie | IA |
| OEL9M0039-G-E | Other | 1.5 | 128×128 |
| OEL9M0039-W-E | Other | 1.5 | 128×128 |
| OEL9M0039-Y-E | Other | 1.5 | 128×128 |
| OEL9M0065-W-E | Other | 2.7 | 256×64 |
| OEL9M0065-Y-E | Other | 2.7 | 256×64 |
| OEL9M0068-W-E | Other | 0.91 | 128×32 |
| OEL9M0068-Y-E | Other | 0.91 | 128×32 |
| OEL9M0078-Y-E | Other | 1.45 | 132×16 |
| OEL9M0082-R-E | Other | 1.1 | 128×128 |
| OEL9M0083-Y-E | Other | 0.96 | 128×64 |
| KCS057QV1BR-G21 | Kyocera | 5.7 | 320×240 |
| KL6448USTS-FFW | Kyocera | 6.9 | 640×480 |
| LM8V31 | SHARP | 7.7 | 640×480 |
| LQ064V3DG05 | SHARP | 6.4 | 640×480 |
| LTD121C32S | TOSHIBA | 12.1 | 800×600 |
| NL10276BC20-08 | NLT | 10.4 | 1024×768 |
| NL192108AC10-01D | NLT | 9.0 | 1920×1080 |
| NL3224BC35-20R | NLT | 5.5 | 320×240 |
| PD050SX2 | E Ink | 5.0 | 800×600 |
| RGS24128022YR000 | RiTdisplay | 2.4 | 128×22 |
