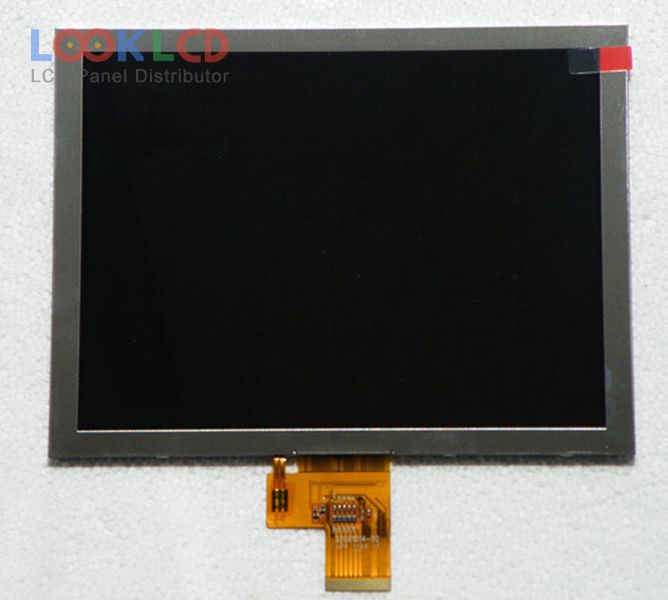

| Číslo dielu | EJ080NA-04B |
| Značka | Innolux |
| Veľkosť | 8.0 |
| Aplikácia | DPF |
| Rozhodnutie | 1024×768 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 700:1 |
| Farby | 262K/16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | EJ080NA-04B |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 8.0 inch |
| rozhodnutie | 1024(RGB)×768 , XGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 162.048×121.536 mm |
| obrys | 183×141 mm |
| povrch | Hard coating |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odozvy | 6/14 (Typ.)(Tr/Td) |
| pozorovací uhol | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | WLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 40 pins |
| vstupné napätie | 3.3/11.5/22/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikácie | DPF |
