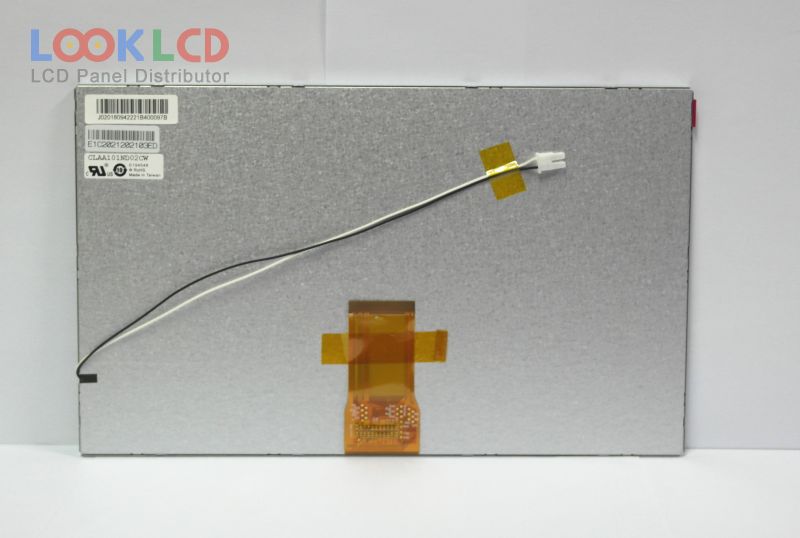

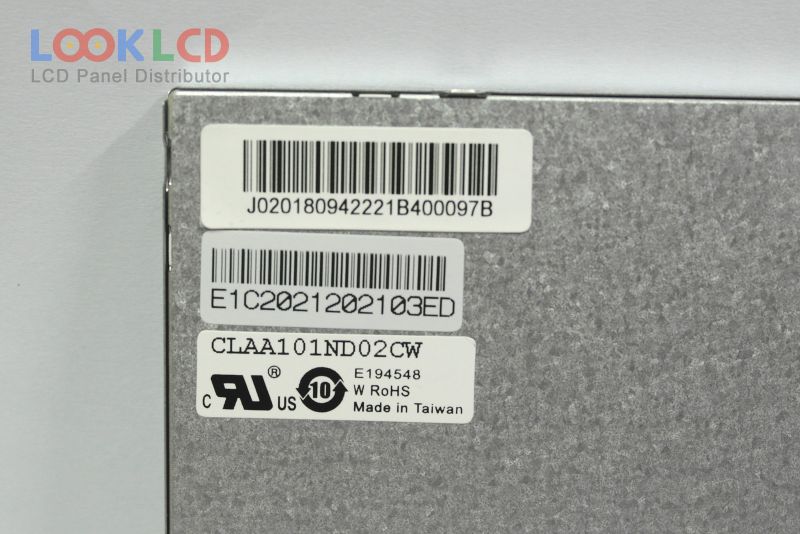

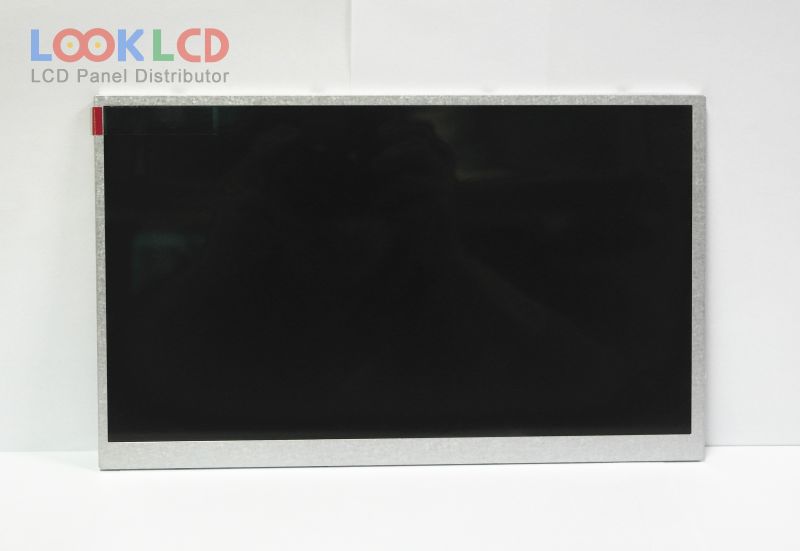

| Číslo dielu | CLAA101ND02CW |
| Značka | CPT |
| Veľkosť | 10.1 |
| Aplikácia | DPF |
| Rozhodnutie | 1024×600 |
| Zloženie | LCM |
| Jas | |
| CR | 600:1 |
| Farby | 262K/16.2M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CPT |
| panelový model | CLAA101ND02CW |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.1 inch |
| rozhodnutie | 1024(RGB)×600 , WSVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 222.72×125.28 mm |
| povrch | Antiglare |
| jas | |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 50 pins |
| aplikácie | DPF |
