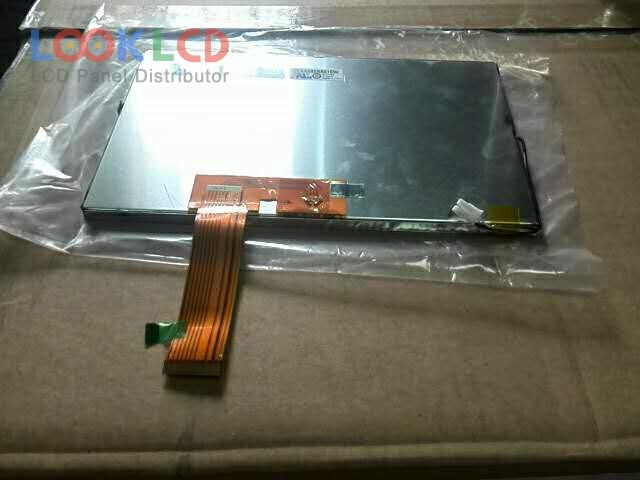

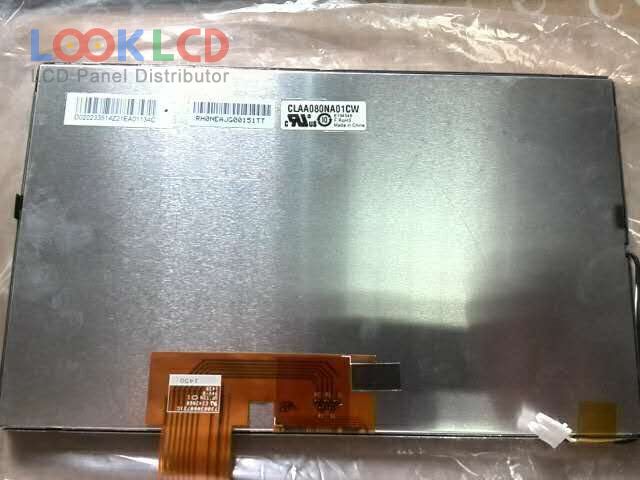

| Číslo dielu | CLAA080NA01 CW |
| Značka | CPT |
| Veľkosť | 8.0 |
| Aplikácia | CNS |
| Rozhodnutie | 1024×600 |
| Zloženie | LCM |
| Jas | 670 |
| CR | 800:1 |
| Farby | 262K/16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CPT |
| panelový model | CLAA080NA01 CW |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 8.0 inch |
| rozhodnutie | 1024(RGB)×600 , WSVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 176.64×99.36 mm |
| obrys | 192.8×116.9×6.7 mm |
| povrch | Antiglare |
| jas | 670 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 75/75/50/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 13S3PWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 40 pins |
| vstupné napätie | 3.3/9.6/21.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikácie | CNS |
