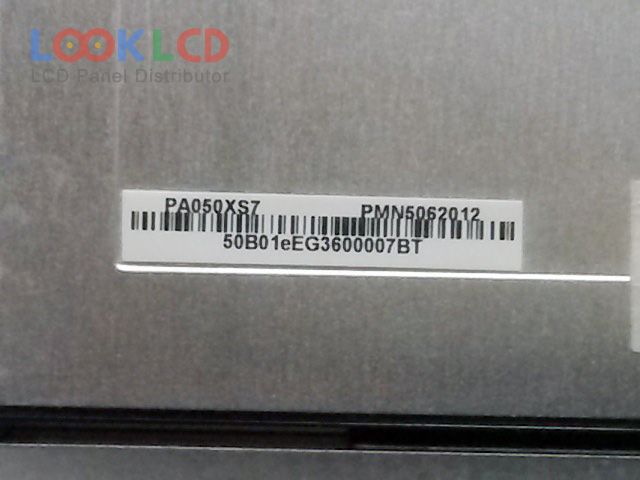

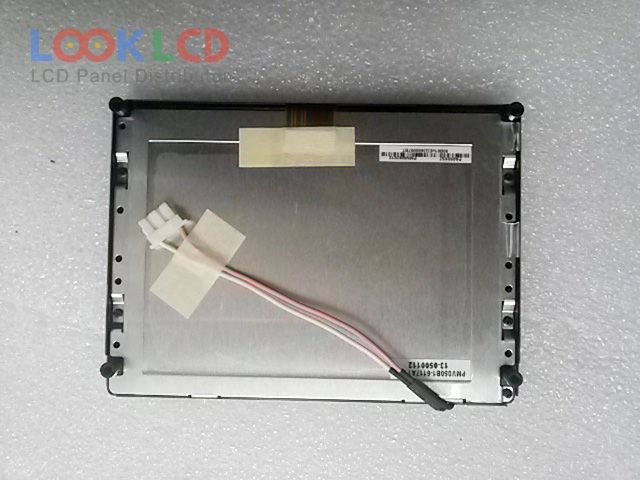

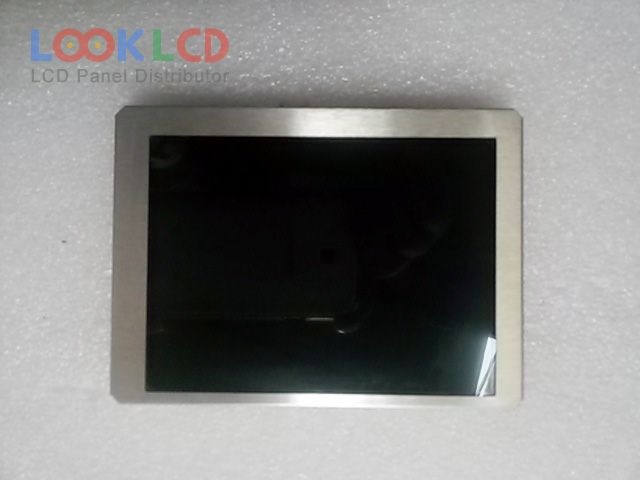

| Číslo dielu | PA050XS7 |
| Značka | E Ink |
| Veľkosť | 5.0 |
| Aplikácia | CNS |
| Rozhodnutie | 320×234 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 350:1 |
| Farby | Full color |
| Podsvietenie | CCFL |
| Rozhranie | Analog |
| značka panelu | PVI |
| panelový model | PA050XS7 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 5.0 inch |
| rozhodnutie | 320(RGB)×234 |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 102.72×74.53 mm |
| obrys | 126.4×92.3×13.2 mm |
| povrch | |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 350:1 (Typ.) |
| zobraziť farby | Full color |
| Doba odozvy | 15/30 (Typ.)(Tr/Td) |
| pozorovací uhol | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhranie | TFT Specific Analog RGB, 30 pins |
| vstupné napätie | 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VGL) |
| aplikácie | CNS |
