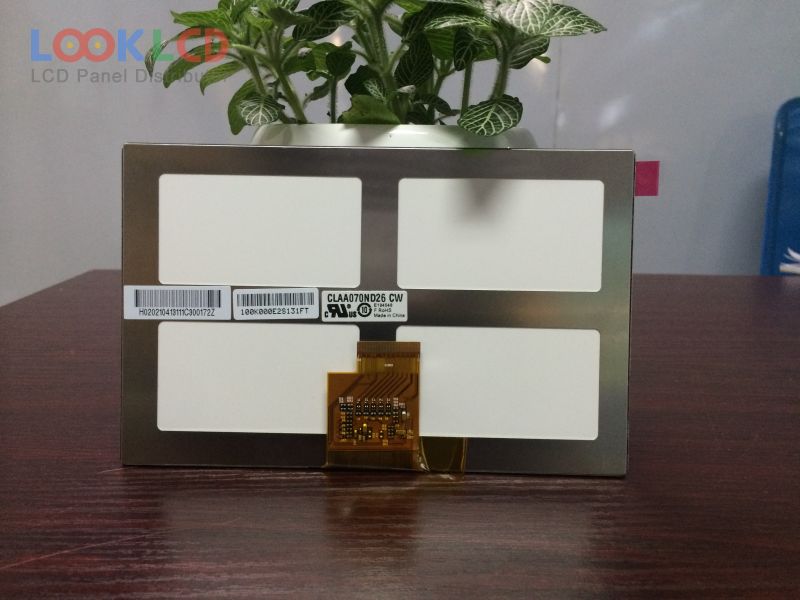

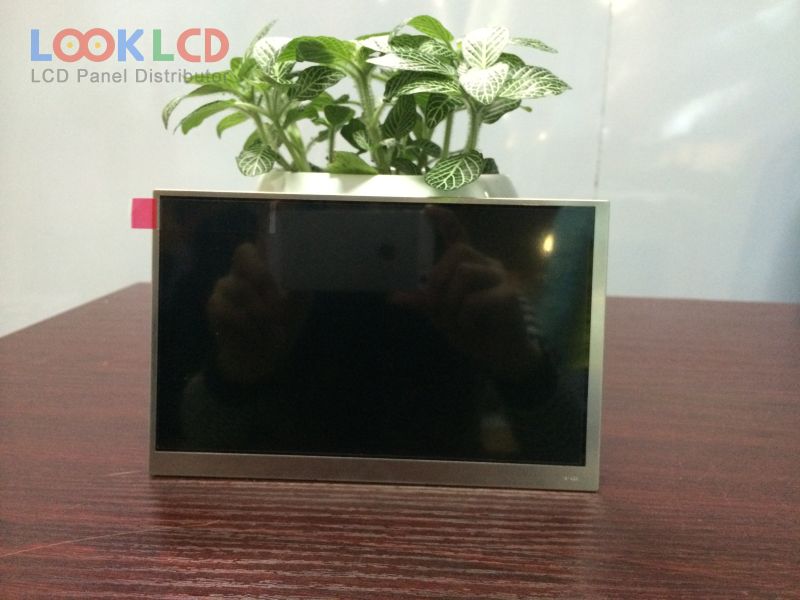

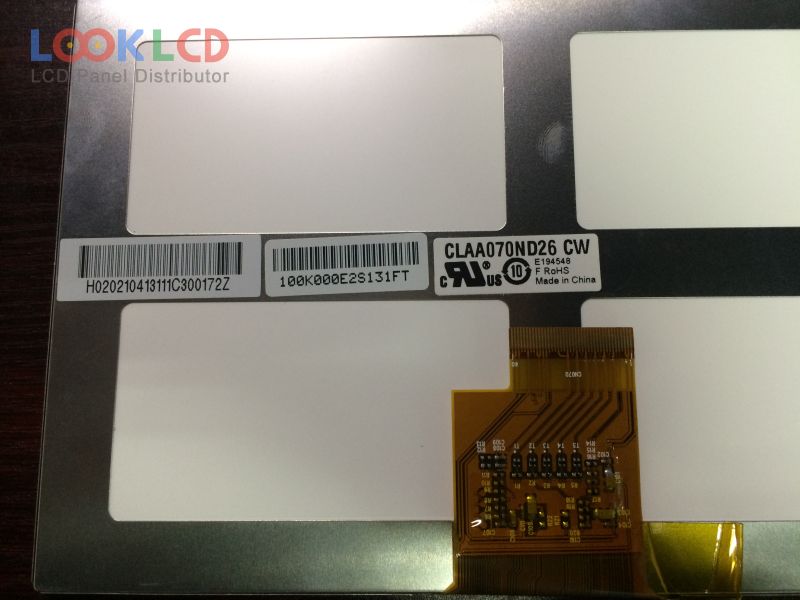

| Číslo dielu | CLAA070ND26CW |
| Značka | CPT |
| Veľkosť | 7.0 |
| Aplikácia | MP4 |
| Rozhodnutie | 1024×600 |
| Zloženie | LCM |
| Jas | 600 |
| CR | 700:1 |
| Farby | 262K/16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CPT |
| panelový model | CLAA070ND26CW |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 1024(RGB)×600 , WSVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 153.6×90 mm |
| obrys | 165.75×105.39×3.25 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 600 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 6S6PWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 40 pins |
| vstupné napätie | 3.3/9.6/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikácie | MP4 |
| CLAA070LF05CW | CPT | 7.0 | 800×480 |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| CLAA070LH01AW | CPT | 7.0 | 800×480 |
| CLAA070LJ01CW | CPT | 7.0 | 800×480 |
| CLAA070NB02CT | CPT | 7.0 | 1024×600 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| A065VL01 V2 | AUO | 6.5 | 800×480 |
| A070VW04 V0 | AUO | 7.0 | 800×480 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| CLAA070VA01 | CPT | 7.0 | 800×480 |
| DLC0700MIG | Other | 7.0 | 800×480 |
| EJ070NA-01J | Innolux | 7.0 | 1024×600 |
| LMS700KF07 | Samsung | 7.0 | 800×480 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
