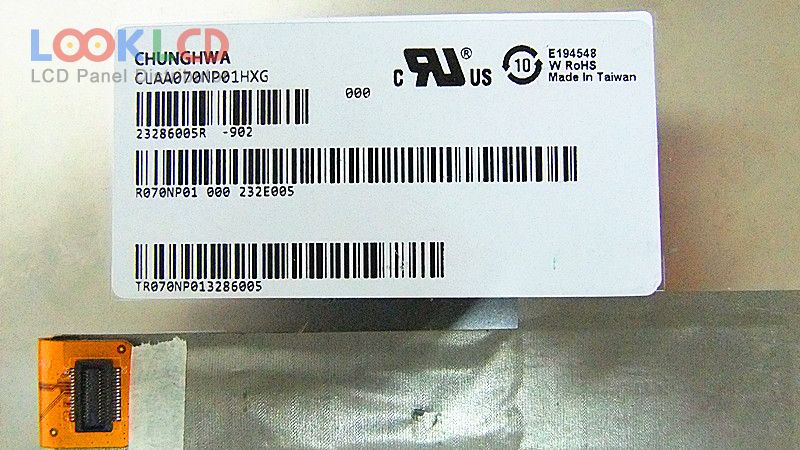

| Číslo dielu | CLAA070NP01 |
| Značka | CPT |
| Veľkosť | 7.0 |
| Aplikácia | UMPC |
| Rozhodnutie | 1024×600 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 500:1 |
| Farby | 16.2M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CPT |
| panelový model | CLAA070NP01 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 1024(RGB)×600 , WSVGA |
| režim zobrazenia | HFFS, Normally Black, Transmissive |
| aktívna oblasť | 153.6×90 mm |
| obrys | 164.25×100.11 mm |
| povrch | Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 16.2M (6-bit + FRC), CIE193150% |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S7PWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 8-bit), 40 pins |
| vstupné napätie | 3.3/9.3/17.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikácie | UMPC |
