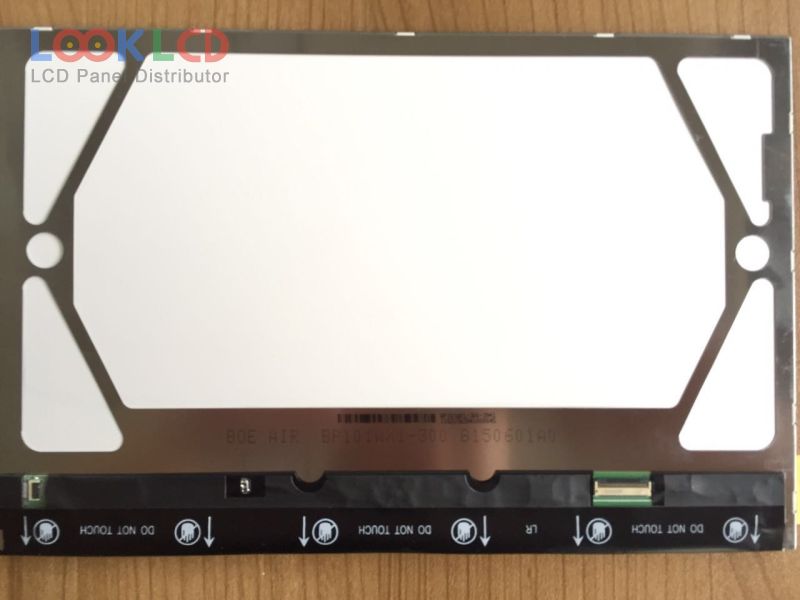

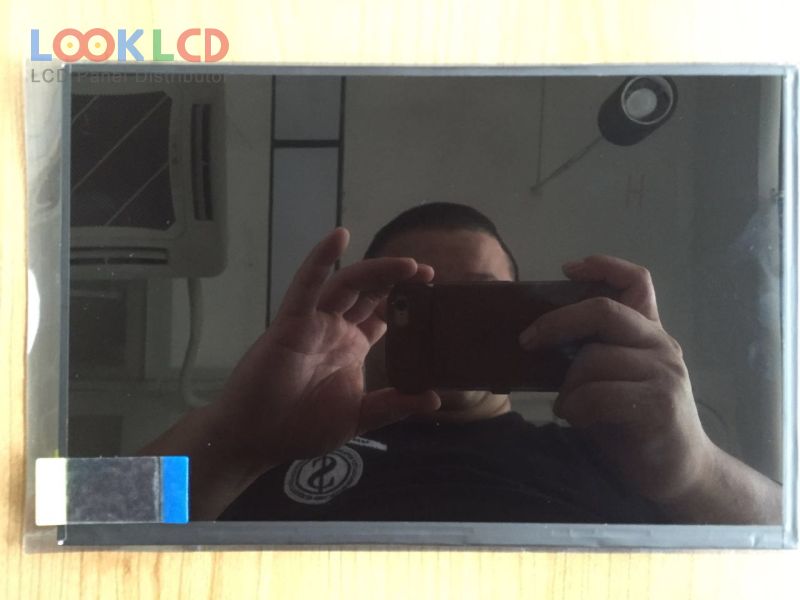

| Číslo dielu | BP101WX1-300 |
| Značka | BOE |
| Veľkosť | 10.1 |
| Aplikácia | PAD |
| Rozhodnutie | 1280×800 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 900:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | BOE |
| panelový model | BP101WX1-300 5 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.1 inch |
| rozhodnutie | 1280(RGB)×800 , WXGA |
| režim zobrazenia | ADS, Normally Black, Transmissive |
| aktívna oblasť | 216.96×135.6 mm |
| obrys | 228.21×148.86×4.59 mm |
| povrch | Hard coating (3H), Antireflection |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 900:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193153% |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 stringsWLEDWithout Driver |
| signálové rozhranie | LVDS (1 ch, 8-bit), 45 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | PAD |
