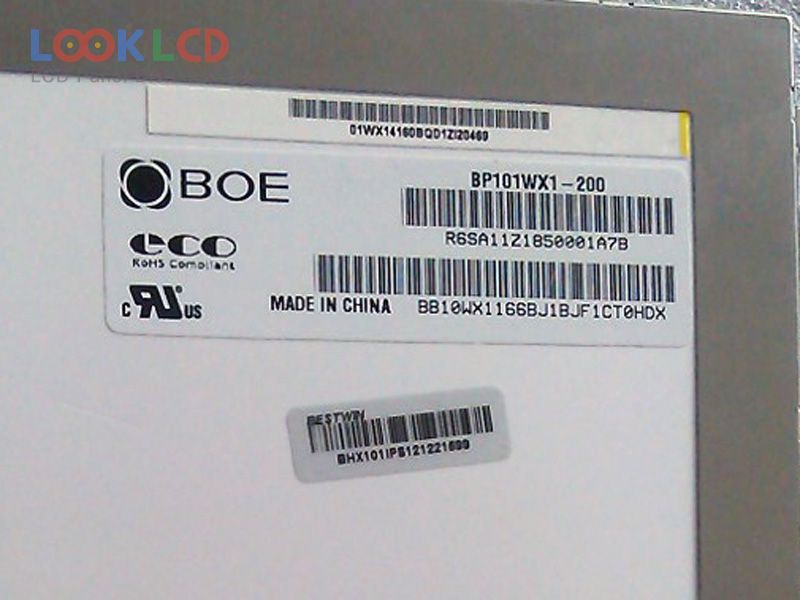

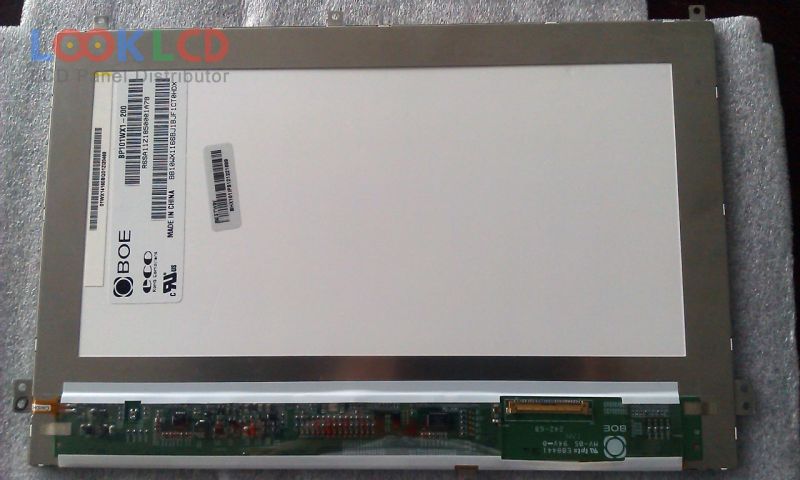

| Číslo dielu | BP101WX1-200 |
| Značka | BOE |
| Veľkosť | 10.1 |
| Aplikácia | PAD |
| Rozhodnutie | 1280×800 |
| Zloženie | LCM |
| Jas | 350 |
| CR | 600:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | BOE |
| panelový model | BP101WX1-200 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.1 inch |
| rozhodnutie | 1280(RGB)×800 , WXGA |
| režim zobrazenia | ADS, Normally Black, Transmissive |
| aktívna oblasť | 216.96×135.6 mm |
| povrch | Hard coating (3H), Antireflection |
| jas | 350 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Min.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193150% |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 6S6PWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 8-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | PAD |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| B101EVT05.0 | AUO | 10.1 | 1280×800 |
| BP101WX1-100 | BOE | 10.1 | 1280×800 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| BP101WX1-400 | BOE | 10.1 | 1280×800 |
| G101EVN01.0 | AUO | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| BP070WX6-400 | BOE | 7.0 | 800×1280 |
| F101NWN7-0 | IVO | 10.1 | 1920×1200 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| HX104X02-100 | HYDIS | 10.4 | 1024×768 |
| LD070WX6-SM01 | LG Display | 7.0 | 800×1280 |
| LTL089CL02-001 | Samsung | 8.9 | 1920×1200 |
| LTL089CL02-002 | Samsung | 8.9 | 1920×1200 |
| N101ICG-L11 | Innolux | 10.1 | 1280×800 |
