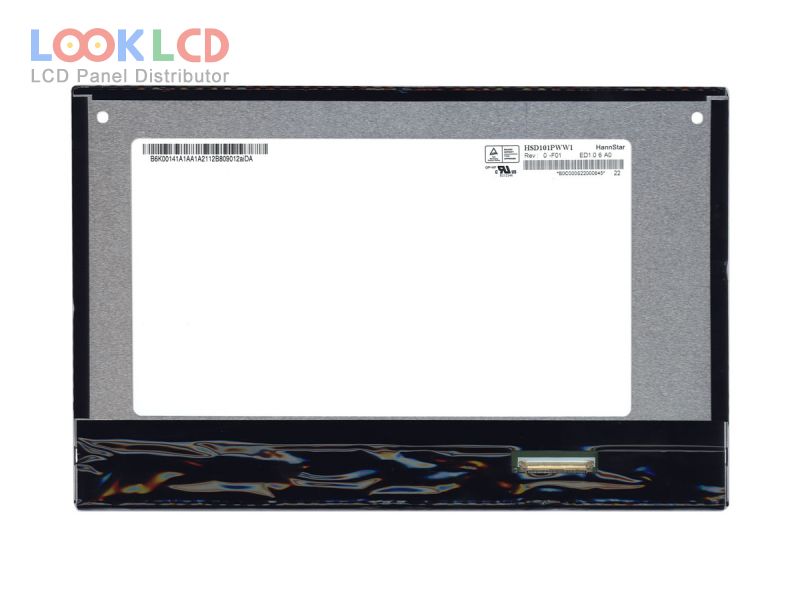

| Číslo dielu | HSD101PWW1-F01 |
| Značka | HannStar |
| Veľkosť | 10.1 |
| Aplikácia | PAD |
| Rozhodnutie | 1280×800 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 800:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | HannStar |
| panelový model | HSD101PWW1-F01 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.1 inch |
| rozhodnutie | 1280(RGB)×800 , WXGA |
| režim zobrazenia | HS-IPS, Normally Black, Transmissive |
| aktívna oblasť | 216.96×135.6 mm |
| obrys | 227.42×147.69×3.13 mm |
| povrch | Hard coating |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193145% |
| Doba odozvy | 25 (Typ.)(Tr+Td) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLED |
| signálové rozhranie | LVDS (1 ch, 6-bit) |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | PAD |
