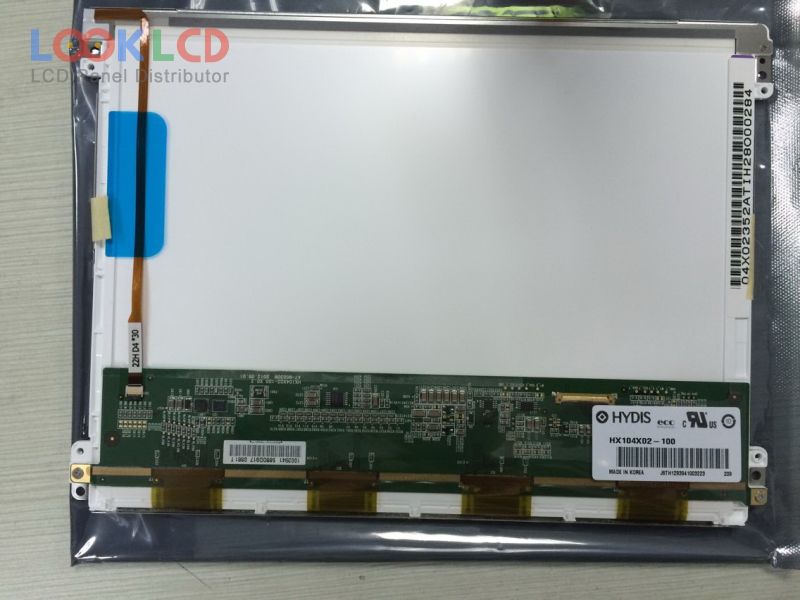

| Číslo dielu | HX104X02-100 |
| Značka | HYDIS |
| Veľkosť | 10.4 |
| Aplikácia | PAD |
| Rozhodnutie | 1024×768 |
| Zloženie | LCM |
| Jas | 340 |
| CR | 600:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | HYDIS |
| panelový model | HX104X02-100 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.4 inch |
| rozhodnutie | 1024(RGB)×768 , XGA |
| režim zobrazenia | AFFS+, Normally Black, Transmissive |
| aktívna oblasť | 210.4×157.8 mm |
| obrys | 238.6×173.2×6.8 mm |
| povrch | Antiglare, Antireflection |
| jas | 340 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193140% |
| Doba odozvy | 36 (Typ.)(Tr+Td) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 7S6PWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6-bit), 30 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | PAD |
