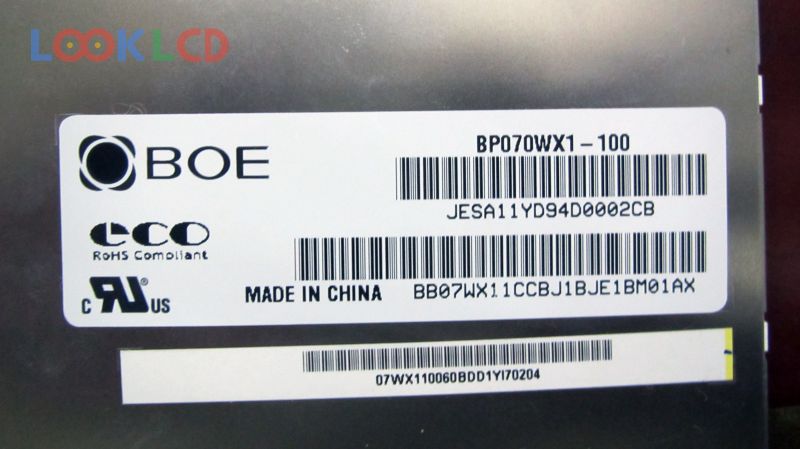

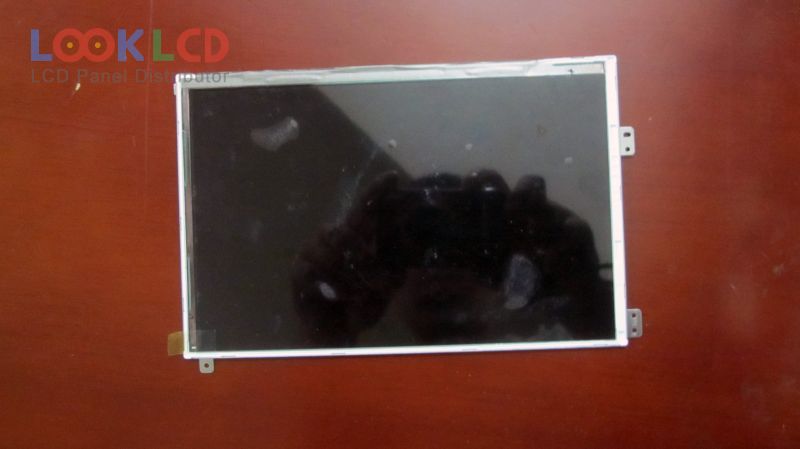

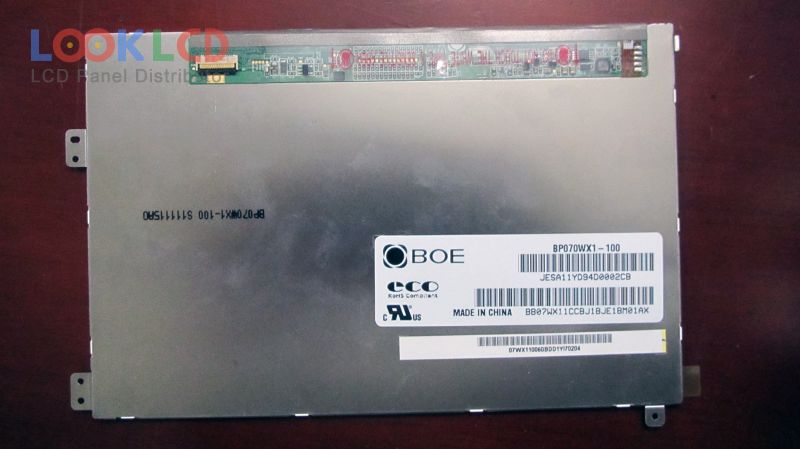

| Číslo dielu | BP070WX1-100 |
| Značka | BOE |
| Veľkosť | 7.0 |
| Aplikácia | UMPC |
| Rozhodnutie | 1280×800 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 800:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | BOE |
| panelový model | BP070WX1-100 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 1280(RGB)×800 , WXGA |
| režim zobrazenia | AFFS, Normally Black, Transmissive |
| aktívna oblasť | 150.72×94.2 mm |
| obrys | 161×107×4.4 mm |
| povrch | Hard coating (3H), Antireflection |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC) |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 5S4PWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 8-bit), 39 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | UMPC |
| BP070WS1-102 | BOE | 7.0 | 1024×600 |
| BP070WS1-200 | BOE | 7.0 | 1024×600 |
| BP070WS1-400 | BOE | 7.0 | 1024×600 |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| BP070WSA-400 | BOE | 7.0 | 1024×600 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| BP070WX6-400 | BOE | 7.0 | 800×1280 |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| CLAA070LC0CCW | CPT | 7.0 | 800×480 |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| HJ070IA-02F | Innolux | 7.0 | 1280×800 |
| HV056WX1-100 | HYDIS | 5.6 | 1280×800 |
| HV056WX2-100 | HYDIS | 5.6 | 1280×800 |
| LD070WS2-SL06 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL07 | LG Display | 7.0 | 1024×600 |
| LTD056ET0T | TOSHIBA | 5.6 | 1024×600 |
| N070ICG-LD1 | Innolux | 7.0 | 1280×800 |
| N070ICG-LD3 | Innolux | 7.0 | 1280×800 |
