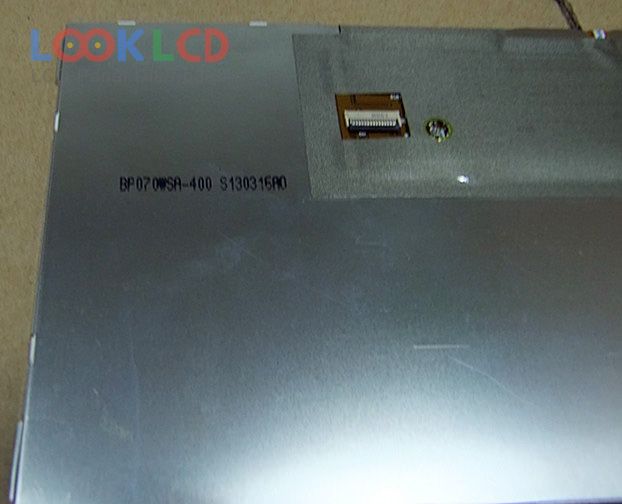

| Číslo dielu | BP070WSA-400 |
| Značka | BOE |
| Veľkosť | 7.0 |
| Aplikácia | PAD |
| Rozhodnutie | 1024×600 |
| Zloženie | LCM |
| Jas | |
| CR | 900:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | |
| značka panelu | BOE |
| panelový model | BP070WSA-400 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 1024(RGB)×600 , WSVGA |
| režim zobrazenia | ADS, Normally Black, Transmissive |
| aktívna oblasť | 153.6×90 mm |
| povrch | Hard coating (3H), Antireflection |
| jas | |
| kontrastný pomer | 900:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC) |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| aplikácie | PAD |
