| Číslo dielu | VVX10T022N00 |
| Značka | Panasonic |
| Veľkosť | 10.1 |
| Aplikácia | PAD |
| Rozhodnutie | 2560×1600 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | eDP |
| značka panelu | Panasonic |
| panelový model | VVX10T022N00 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.1 inch |
| rozhodnutie | 2560(RGB)×1600 , WQXGA |
| režim zobrazenia | IPS, Normally Black, Transmissive |
| aktívna oblasť | 216.96×135.6 mm |
| obrys | 227.65×147.85×4.37 mm |
| povrch | Hard coating |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193172% |
| Doba odozvy | 30 (Max.)(Tr+Td) |
| pozorovací uhol | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 7S6PWLEDWithout Driver |

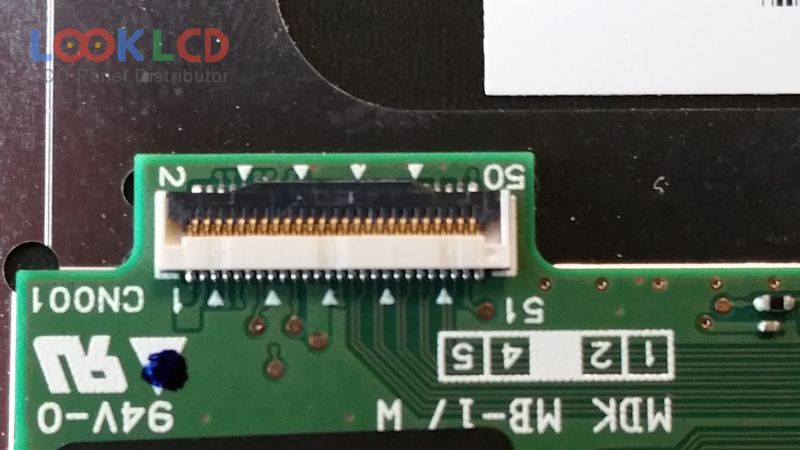

| signálové rozhranie | eDP (4 Lanes), 51 pins |
| vstupné napätie | 3.7V (Typ.) |
| aplikácie | PAD |
