| Číslo dielu | LTL101DL03-T01 |
| Značka | Samsung |
| Veľkosť | 10.1 |
| Aplikácia | PAD |
| Rozhodnutie | 2560×1600 |
| Zloženie | LCM |
| Jas | 370 |
| CR | 800:1 |
| Farby | 16.2M |
| Podsvietenie | WLED |
| Rozhranie | eDP |
| značka panelu | SAMSUNG |
| panelový model | LTL101DL03-T01 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.1 inch |
| rozhodnutie | 2560RG(BW)×1600 , WQXGA |
| režim zobrazenia | PLS, Normally Black, Transmissive |
| aktívna oblasť | 216.576×135.36 mm |
| obrys | 232.22×156.92×5.2 mm |
| povrch | Glare (Haze 0%), Hard coating (2H) |
| jas | 370 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 16.2M (6-bit + FRC) |
| Doba odozvy | 16 (Typ.)(Tr+Td) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 7S6PWLEDEmbedded (LED Driver) |

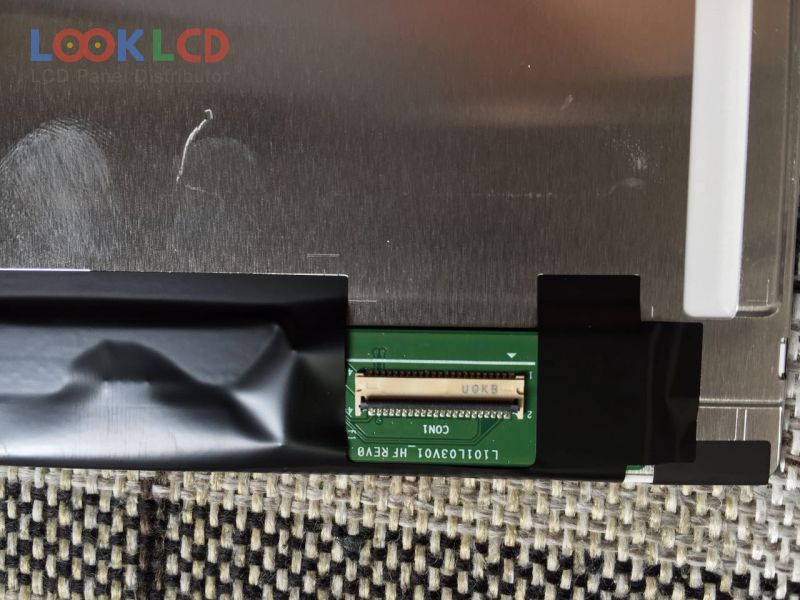

| signálové rozhranie | eDP (4 Lanes), 45 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | PAD |
