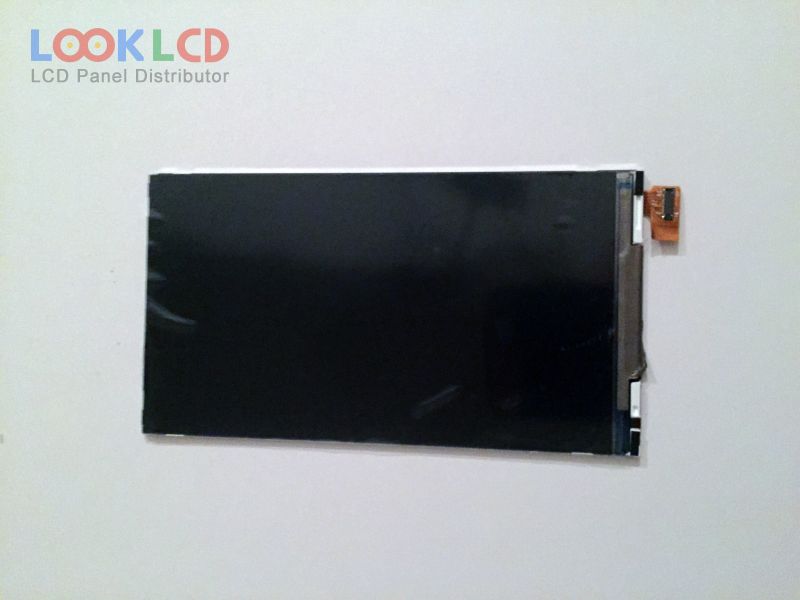

| Číslo dielu | TM055JDHP71 |
| Značka | Tianma |
| Veľkosť | 5.5 |
| Aplikácia | MPH |
| Rozhodnutie | 720×1280 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 900:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | MIPI |
| značka panelu | TIANMA |
| panelový model | TM055JDHP71 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 5.5 inch |
| rozhodnutie | 720(RGB)×1280 , WXGA |
| režim zobrazenia | SFT, Normally Black, Transmissive |
| aktívna oblasť | 68.04×120.96 mm |
| obrys | 71.14×130.76 mm |
| povrch | |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 900:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193172% |
| Doba odozvy | 35 (Max.)(Tr+Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 6S2PWLEDWithout Driver |
| signálové rozhranie | MIPI (4 data lanes), 30 pins |
| vstupné napätie | 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN) |
| aplikácie | MPH |
