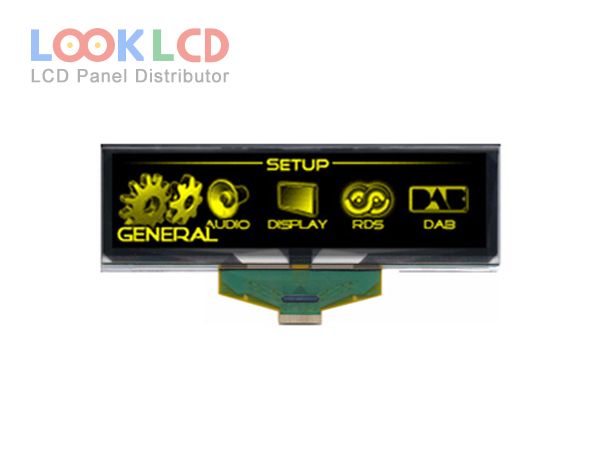

| Číslo dielu | UG-5664ASYGF01 |
| Značka | WiseChip |
| Veľkosť | 5.5 |
| Aplikácia | IA |
| Rozhodnutie | 256×64 |
| Zloženie | OLED |
| Jas | 60 |
| CR | 10000:1 |
| Farby | Grayscale(Y) |
| Podsvietenie | self |
| Rozhranie | CPU/SPI |
| značka panelu | Univision |
| panelový model | UG-5664ASYGF01 |
| typ panelu | PM-OLED , OLED |
| veľkosť panelu | 5.5 inch |
| rozhodnutie | 256×64 |
| aktívna oblasť | 135.65×33.89 mm |
| obrys | 146×45×2.1 mm |
| povrch | Antiglare |
| jas | 60 cd/m² (Typ.) |
| kontrastný pomer | 10000 : 1 (Typ.) |
| zobraziť farby | Grayscale(Y) (4-bit) |
| pozorovací uhol | |
| vodič ic | COF Built-in SSD1322 |
| signálové rozhranie | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| vstupné napätie | 2.8/15V (Typ.)(VCI/VCC) |
| rohs: | |
| aplikácie | IA |
