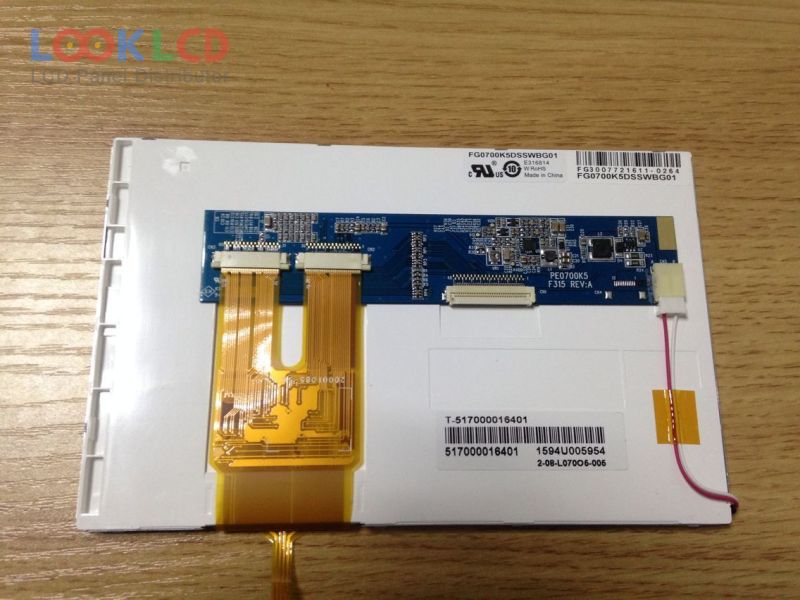

| Číslo dielu | FG0700K5DSSWBG01 |
| Značka | Data Image |
| Veľkosť | 7.0 |
| Aplikácia | CNS |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 500 |
| CR | 400:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | Data Image |
| panelový model | FG0700K5DSSWBG01 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 152.4×91.44 mm |
| obrys | 165×104.44×9.7 mm |
| povrch | Antiglare |
| jas | 500 cd/m² (Typ.) |
| kontrastný pomer | 400:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 5/11 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 3S8PWLEDEmbedded (LED Driver) |
| signálové rozhranie | Parallel RGB (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.)(VCC) |
| aplikácie | CNS |
