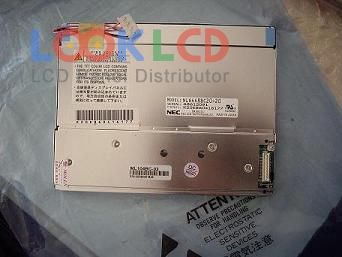

| Číslo dielu | NL6448BC20-20 |
| Značka | NLT |
| Veľkosť | 6.5 |
| Aplikácia | IA |
| Rozhodnutie | 640×480 |
| Zloženie | LCM |
| Jas | 650 |
| CR | 600:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | TTL |
| značka panelu | NEC |
| panelový model | NL6448BC20-20 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 6.5 inch |
| rozhodnutie | 640(RGB)×480 , VGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 132.48×99.36 mm |
| obrys | 153×118 mm |
| povrch | Clear, Hard coating (2H), Antireflection |
| jas | 650 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193140% |
| Doba odozvy | 6/19 (Typ.)(Tr/Td) |
| pozorovací uhol | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhranie | CMOS (1 ch, 6-bit), 31 pins |
| vstupné napätie | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| aplikácie | IA |
