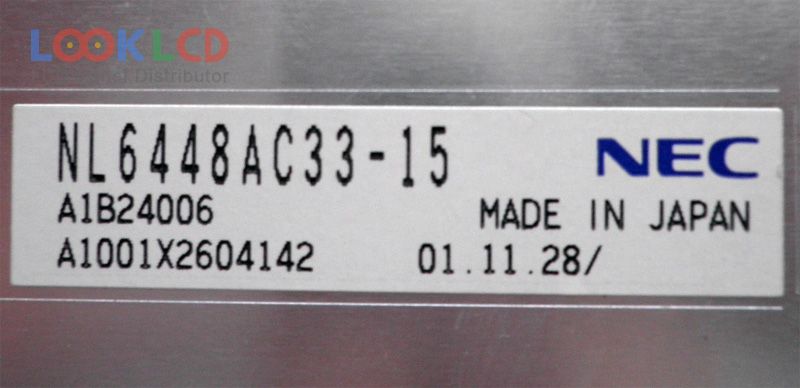

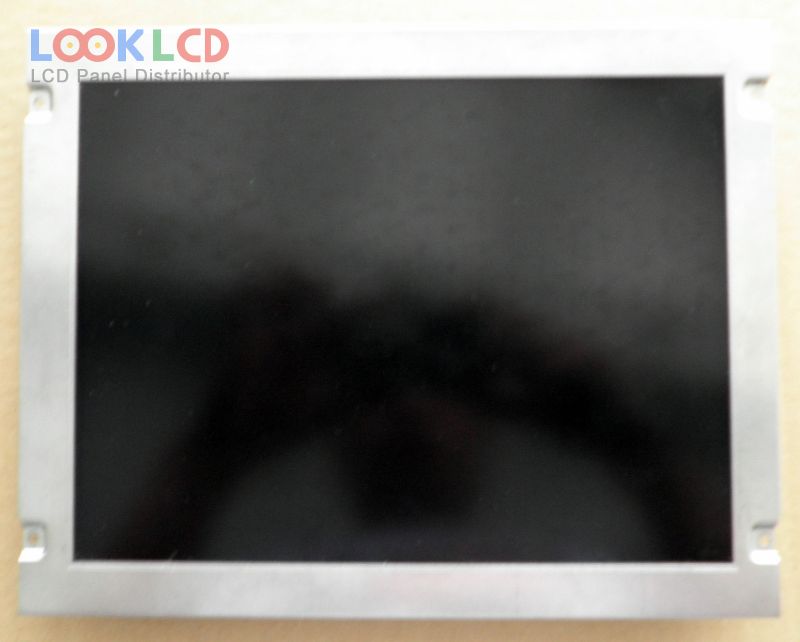

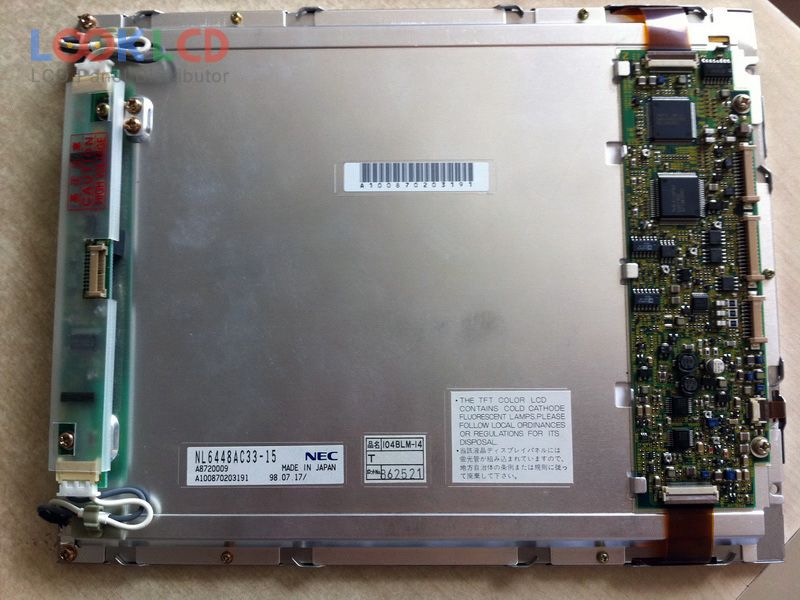

| Číslo dielu | NL6448AC33-15 |
| Značka | NLT |
| Veľkosť | 10.4 |
| Aplikácia | IA |
| Rozhodnutie | 640×480 |
| Zloženie | LCM |
| Jas | 200 |
| CR | 150:1 |
| Farby | Full color |
| Podsvietenie | CCFL |
| Rozhranie | Analog |
| značka panelu | NEC |
| panelový model | NL6448AC33-15 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.4 inch |
| rozhodnutie | 640(RGB)×480 , VGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 211.2×158.4 mm |
| obrys | 251×196×24 mm |
| povrch | |
| jas | 200 cd/m² (Typ.) |
| kontrastný pomer | 150:1 (Typ.) |
| zobraziť farby | Full color , CIE193155% |
| Doba odozvy | 40 (Max.)(Tr) |
| pozorovací uhol | 50/50/15/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 2 pcsCCFLEmbedded (Inverter) |
| signálové rozhranie | Analog RGB, 23 pins |
| vstupné napätie | 5.0/12.0V (Typ.)(VCC/VDD1) |
| aplikácie | IA |
