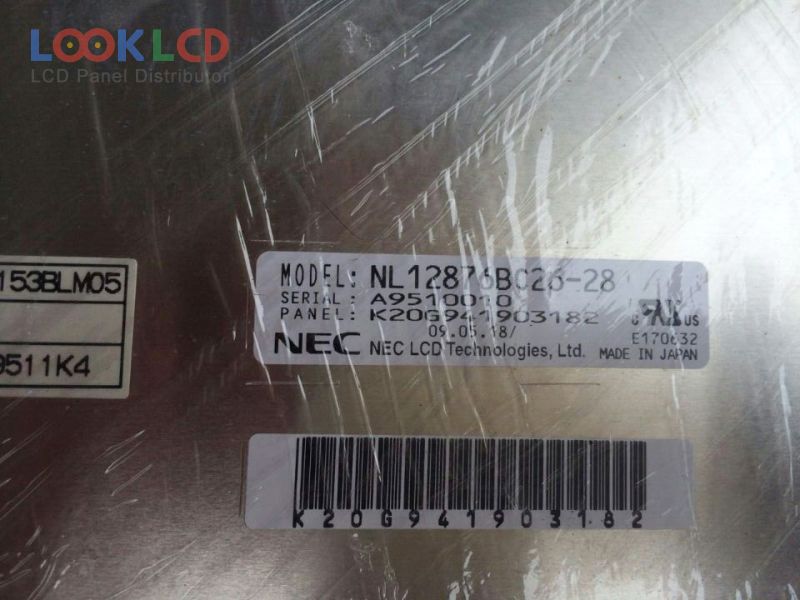

| Číslo dielu | NL12876BC26-28 |
| Značka | NLT |
| Veľkosť | 15.3 |
| Aplikácia | IA |
| Rozhodnutie | 1280×768 |
| Zloženie | LCM |
| Jas | 330 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | NEC |
| panelový model | NL12876BC26-28 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 15.3 inch |
| rozhodnutie | 1280(RGB)×768 , WXGA |
| režim zobrazenia | UA-SFT, Normally Black, Transmissive |
| aktívna oblasť | 334.08×200.45 mm |
| obrys | 358×226 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 330 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Doba odozvy | 14/11 (Typ.)(Tr/Td) |
| pozorovací uhol | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (1 ch, 8-bit), 20 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | IA |
| NL12876AC18-03 | NLT | 10.6 | 1280×768 |
| NL12876AC18-03D | NLT | 10.6 | 1280×768 |
| NL12876AC39-01 | NLT | 23.0 | 1280×768 |
| NL12876BC15-01 | NLT | 8.9 | 1280×768 |
| NL12876BC26-25 | NLT | 15.3 | 1280×768 |
| NL12876BC26-28 | NLT | 15.3 | 1280×768 |
| AM-800480LATMQW-TN0H | AMPIRE | 5.0 | 800×480 |
| ET035009DH6 | EDT | 3.5 | 320×240 |
| G057QN01 V1 | AUO | 5.7 | 320×240 |
| G220SW01 V0 | AUO | 22.0 | 1680×1050 |
| LQ104V1DG5A | SHARP | 10.4 | 640×480 |
| LQ10D421 | SHARP | 10.4 | 640×480 |
| NL6448AC30-10 | NLT | 9.4 | 640×480 |
| NLB150XG01L-01 | NLT | 15.0 | 1024×768 |
| TM057QDHG04 | Tianma | 5.7 | 640×480 |
| TX18D37VM0AQA | KOE | 7.0 | 800×480 |
