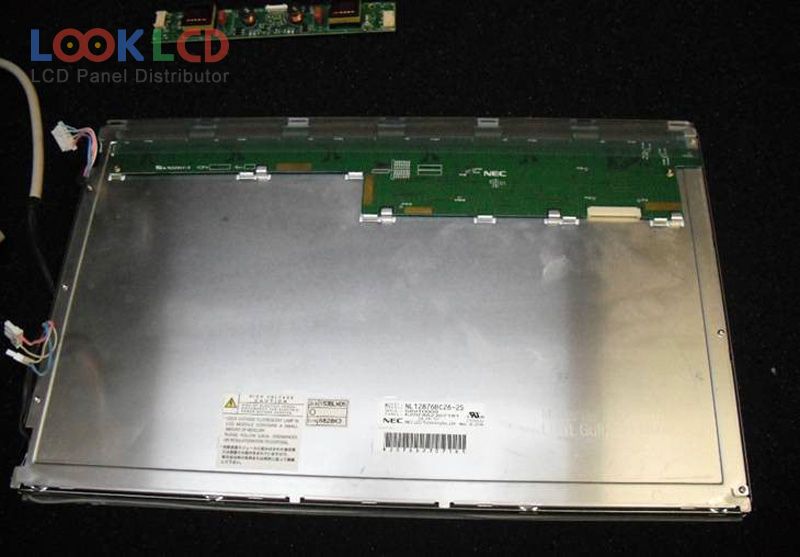

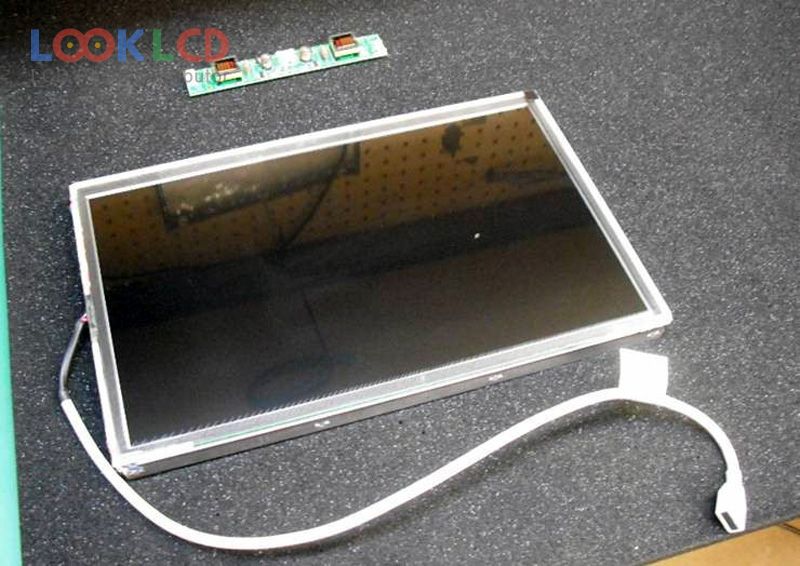

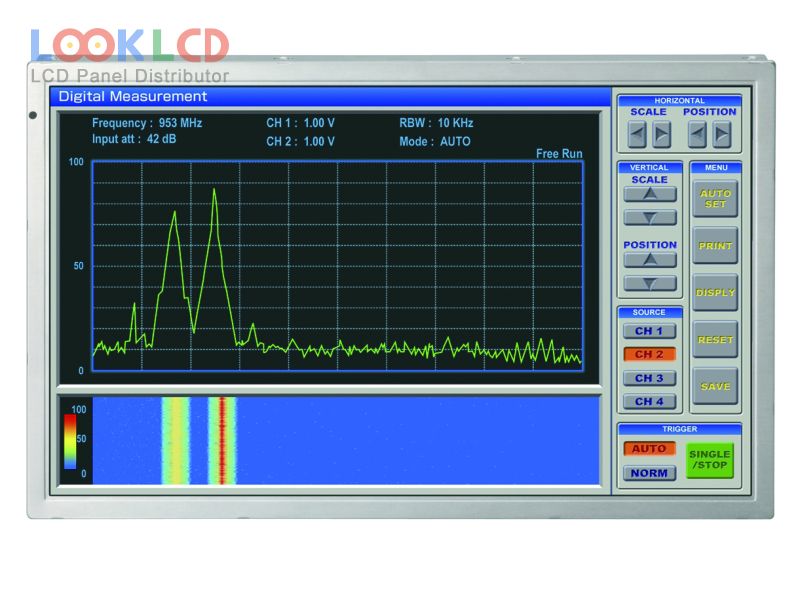

| Číslo dielu | NL12876BC26-25 |
| Značka | NLT |
| Veľkosť | 15.3 |
| Aplikácia | IA |
| Rozhodnutie | 1280×768 |
| Zloženie | LCM |
| Jas | 470 |
| CR | 700:1 |
| Farby | 16.7M |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | NEC |
| panelový model | NL12876BC26-25 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 15.3 inch |
| rozhodnutie | 1280(RGB)×768 , WXGA |
| režim zobrazenia | SA-SFT, Normally Black, Transmissive |
| aktívna oblasť | 334.08×200.45 mm |
| obrys | 358×226 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 470 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193140% |
| Doba odozvy | 14/11 (Typ.)(Tr/Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (1 ch, 8-bit), 20 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | IA |
