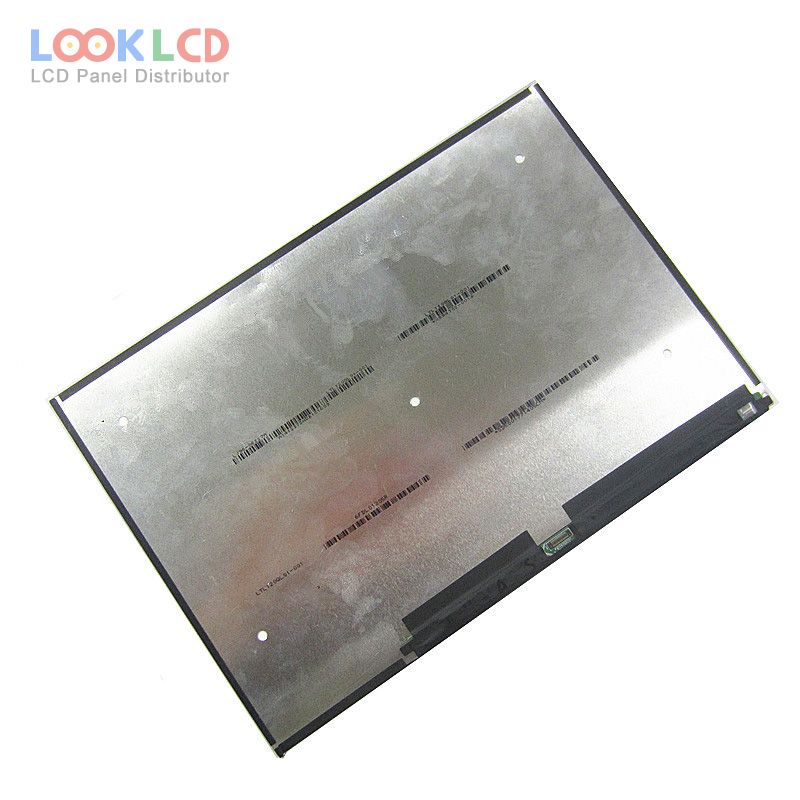

| Číslo dielu | LTL120QL01-001 |
| Značka | Samsung |
| Veľkosť | 12.0 |
| Aplikácia | PAD |
| Rozhodnutie | 2160×1440 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 800:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | eDP |
| značka panelu | SAMSUNG |
| panelový model | LTL120QL01-001 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 12.0 inch |
| rozhodnutie | 2160(RGB)×1440 |
| režim zobrazenia | PLS, Normally Black, Transmissive |
| aktívna oblasť | 254.016×169.344 mm |
| obrys | 263.42×182.26×4.29 mm |
| povrch | Glare (Haze 0%), Hard coating (2H) |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 800:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193172% |
| Doba odozvy | 25/35 (Max.)(Tr/Td) |
| pozorovací uhol | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 9S6PWLEDEmbedded (LED Driver) |
| signálové rozhranie | eDP (4 Lanes), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | PAD |
