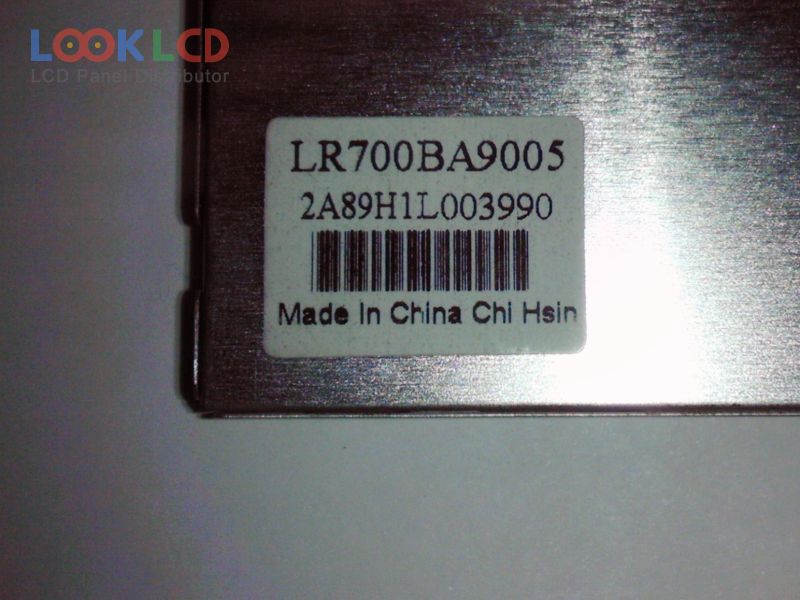

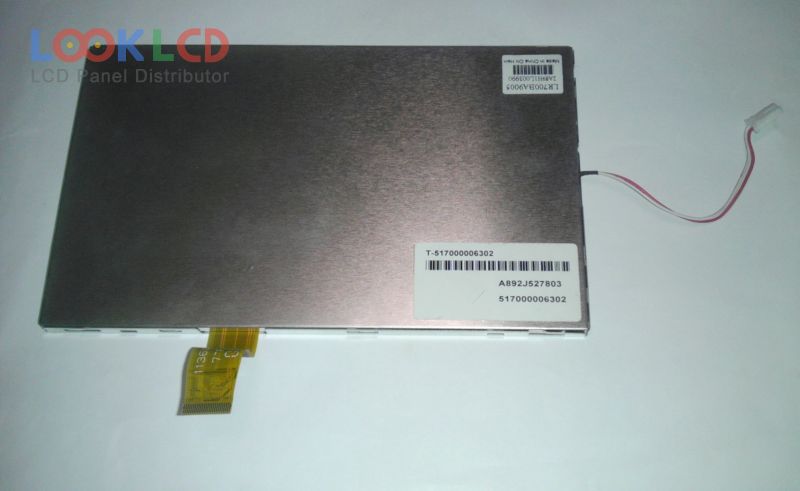

| Číslo dielu | LR700BA9005 |
| Značka | Innolux |
| Veľkosť | 7.0 |
| Aplikácia | VDP |
| Rozhodnutie | 480×234 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 250:1 |
| Farby | Full color |
| Podsvietenie | WLED |
| Rozhranie | Analog |
| značka panelu | ChiHsin |
| panelový model | LR700BA9005 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 480(RGB)×234 |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 154.08×86.58 mm |
| obrys | 164.9×100 mm |
| povrch | Antiglare |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 250:1 (Typ.) |
| zobraziť farby | Full color |
| Doba odozvy | 15/35 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S7PWLEDWithout Driver |
| signálové rozhranie | TFT Specific Analog RGB, 26 pins |
| vstupné napätie | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikácie | VDP |
| A070FW01 | AUO | 7.0 | 480×234 |
| A070FW05 V1 | AUO | 7.0 | 480×234 |
| AC070MD01 | Mitsubishi | 7.0 | 800×480 |
| AM-800480R3TMQW-B2H | AMPIRE | 7.0 | 800×480 |
| CLAA070WP03 | CPT | 7.0 | 800×1280 |
| LR700BA9005 | Innolux | 7.0 | 480×234 |
| LTN070NL01 | Samsung | 7.0 | 1024×600 |
| PW070DS1T6 | E Ink | 7.0 | 480×234 |
| TD070WGCB2 | TPO | 7.0 | 854×480 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
| A056DN01 V2 | AUO | 5.6 | 320×234 |
| A070FW03 V8 | AUO | 7.0 | 480×234 |
| AT056TN03 | Innolux | 5.6 | 320×234 |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| LB065W01-B11B | LG Display | 6.5 | 400×234 |
| LB065WQ3-TD02 | LG Display | 6.5 | 400×240 |
| LQ050A3AD01 | SHARP | 5.0 | 320×234 |
| PA064DS1 | E Ink | 6.4 | 320×234 |
| PW070DS1T1 | E Ink | 7.0 | 480×234 |
| TM056KDH01 | Tianma | 5.6 | 320×234 |
